Transfer Case Draining and Filling: Draining
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped, remove the underbody shield.

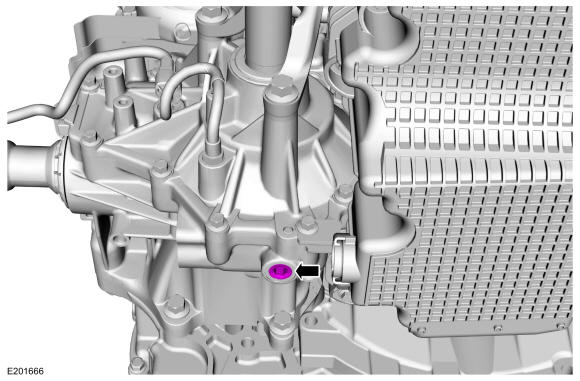

- Remove the PTU drain plug.
- Install the PTU drain plug.
Torque: 33 lb.ft (45 Nm)
