Transfer Case Vent: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the PTU heat shield bolts and the heat shield.
- Disconnect the PTU vent hose and position it aside.

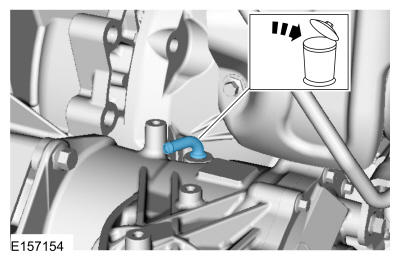

- Remove and discard the PTU vent.
