Transfer Case Vent: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

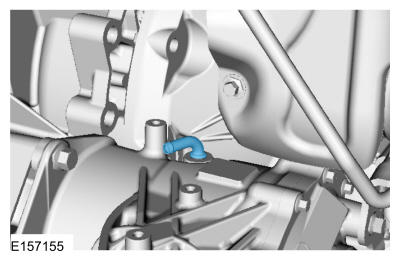

  1. Install a new PTU vent.
    GFD281828Courtesy of FORD MOTOR COMPANY
  2. Connect the PTU vent hose.
    GFD281826Courtesy of FORD MOTOR COMPANY
  3. Install the PTU heat shield and the heat shield bolts.
GFD281825Courtesy of FORD MOTOR COMPANY
