Intermediate Shaft Seal: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the RH halfshaft. Refer to: Front Halfshaft RH - 2.0L EcoBoost (184kW/250PS) - MI4, All-Wheel Drive (AWD) .

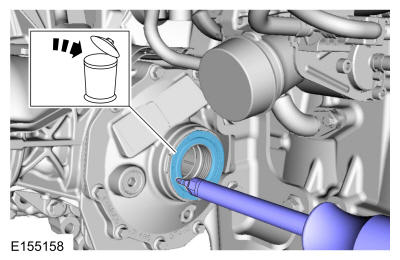

- Using the puller, remove and discard the intermediate shaft seal. Use the General Equipment: Puller
- Inspect the intermediate shaft bushing. Replace if necessary. Refer to: Intermediate Shaft Bushing .
