Transfer Case Draining and Filling
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped, remove the underbody shield.

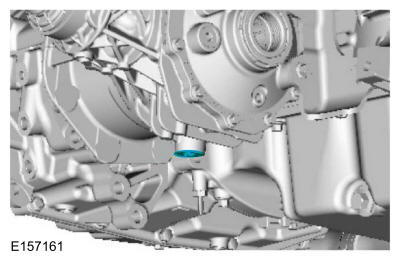

- Remove the PTU drain plug.
- Install the PTU drain plug.
Torque
: 33 lb.ft (45 Nm)
Filling
- Remove the PTU fill plug.
-
NOTE: The fill capacity of the PTU is 15.22 fl. oz. (450 ml).
Fill the PTU with clean fluid, level with the fill plug opening.
Material
: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
- Install the PTU fill plug.
Torque
: 33 lb.ft (45 Nm)
- If equipped, install the underbody shield.
