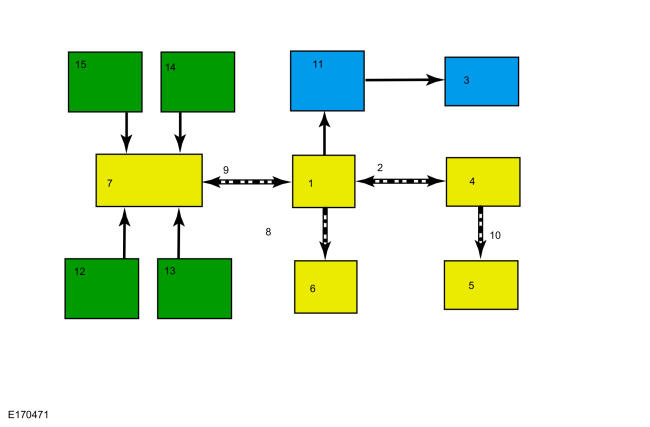

System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCM |
| 2 |
HS-CAN |
| 3 |
Active Torque Coupling (ATC) solenoid |
| 4 |
BCM |
| 5 |
IPC |
| 6 |
RCM |
| 7 |
ABS module |
| 8 |
HS-CAN |
| 9 |
HS-CAN |
| 10 |
MS-CAN |
| 11 |
AWD relay module |
| 12 |
LH rear wheel speed sensor |
| 13 |
RH rear wheel speed sensor |
| 14 |
RH front wheel speed sensor |
| 15 |
LH front wheel speed sensor |
