Transmission Fluid Cooler Tubes - Vehicles With: Active Warm Up: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the following step to remove any tube.

Remove the air cleaner. For 2.7L, Refer to: Air Cleaner . For 3.5L, Refer to: Air Cleaner .
NOTE: Perform the following seven steps to remove the front tubes.
Remove the quick-connect coupling secondary latches.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Using the special tool, disconnect the transmission fluid cooler tubes from the cooler bypass valve.

Courtesy of FORD MOTOR COMPANY
Remove the active grille shutter. Refer to: Active Grille Shutter .
NOTE: 2.7L GTDI.

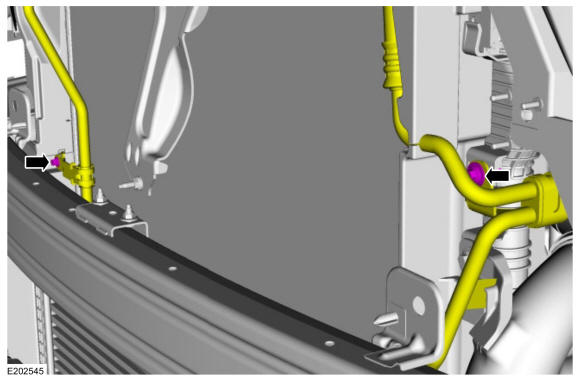

Remove the transmission fluid cooler tube bracket bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L GTDI.

NOTE: Be prepared to collect escaping fluid.

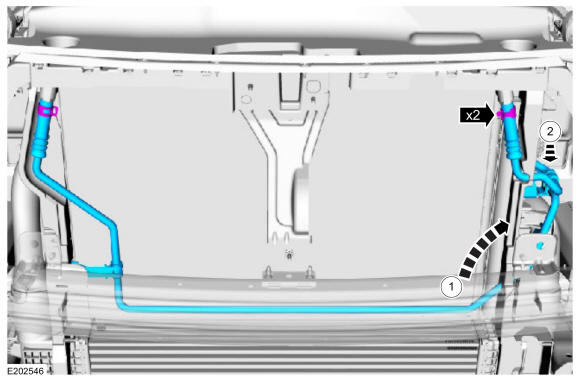

Release the clamps, disconnect the transmission fluid cooler tubes from the transmission fluid cooler and remove the transmission fluid cooler tubes.
1. Rotate the transmission fluid cooler tubes clockwise.
2. Pull the transmission fluid cooler tubes out and remove.
Courtesy of FORD MOTOR COMPANY
NOTE: 3.5L TiVCT.

Remove the transmission fluid cooler tube bracket bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: 3.5L TiVCT.

NOTE: Be prepared to collect escaping fluid.

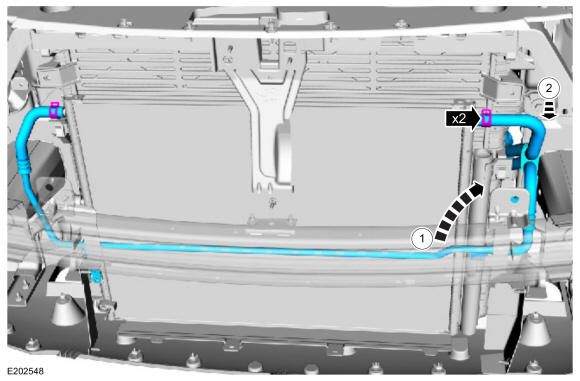

Release the clamps, disconnect the transmission fluid cooler tubes from the transmission fluid cooler and remove the transmission fluid cooler tubes.
1. Rotate the transmission fluid cooler tubes clockwise.
2. Pull the transmission fluid cooler tubes out and remove.
Courtesy of FORD MOTOR COMPANY

NOTE: Perform the following six steps to remove the rear tubes.
Remove the battery tray. Refer to: Battery Tray .
NOTE: Be prepared to collect escaping fluid.

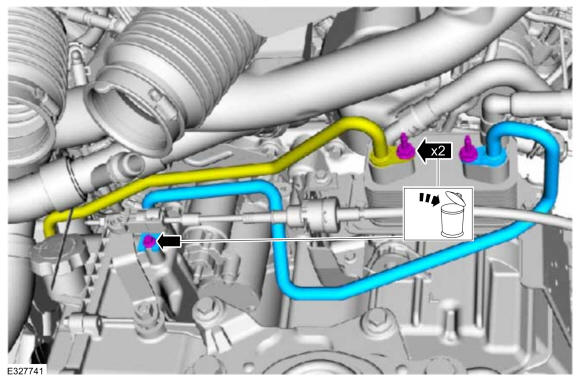

Remove and discard the transmission fluid tube bolt and studbolts. Remove the transmission-to-warmer tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

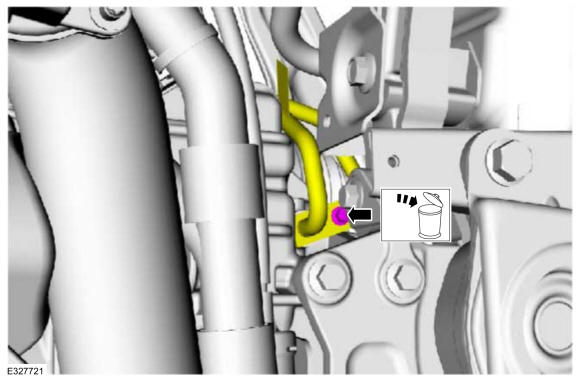

Remove and discard the transmission fluid cooler tube bolt.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the LH splash shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Completely loosen the transmission fluid cooler tube fittings and remove the tubes.

Courtesy of FORD MOTOR COMPANY

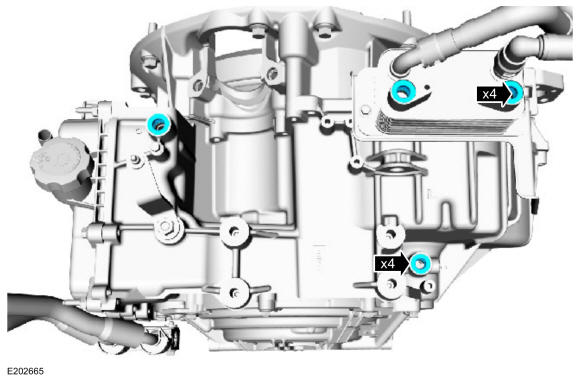

If necessary, remove the backing rings and band seals from the transmission and the transmission fluid warmer.

Courtesy of FORD MOTOR COMPANY
