Cooler Bypass Valve: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the air cleaner. For 2.7L, Refer to: Air Cleaner . For 3.5L, Refer to: Air Cleaner .

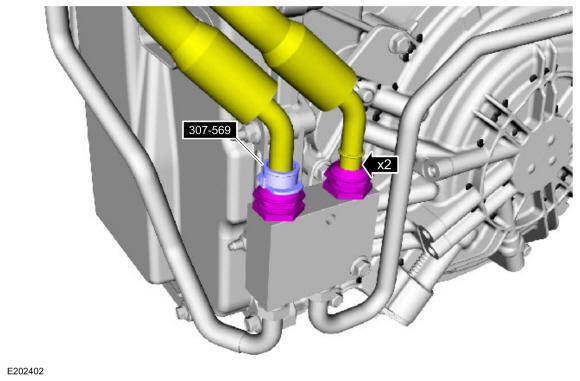

- Remove the quick-connect coupling secondary latches.
-
NOTE: Be prepared to collect escaping fluid.
Using the special tool, disconnect the transmission fluid cooler tubes from the cooler bypass valve.
- Remove the bolts and the LH splash shield.
-
NOTE: Be prepared to collect escaping fluid.
Completely loosen the transmission fluid cooler tube fittings.
- Remove the nuts and the cooler bypass valve.
