3.5L TiVCT With Active Warmup
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

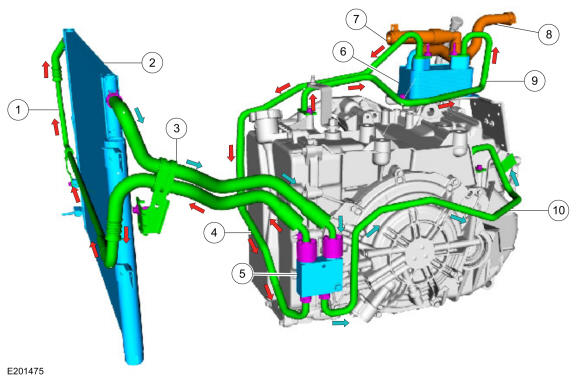

| Item | Description |
|---|---|
| 1 | Transmission fluid cooler inlet tube |
| 2 | Transmission fluid cooler |
| 3 | Transmission cooler outlet tube |
| 4 | Transmission fluid warmer-to-cooler bypass valve tube |
| 5 | Transmission fluid cooler bypass valve |
| 6 | Transmission fluid warmer |
| 7 | Transmission fluid warmer coolant inlet hose |
| 8 | Transmission fluid warmer coolant outlet hose |
| 9 | Transmission-to-transmission fluid warmer tube |
| 10 | Transmission fluid cooler bypass valve-to-transmission tube |
