Cooler Bypass Valve: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner. Refer to: Air Cleaner .
-
NOTE: Be prepared to collect escaping fluid.
Remove the quick-connect coupling secondary latches.

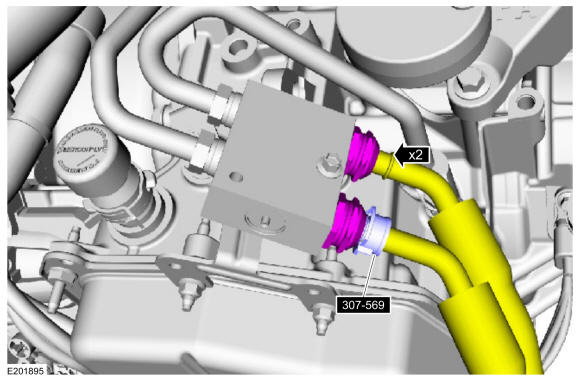

- Using the special tool, disconnect the transmission cooler tubes from the cooler bypass valve. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
-
NOTE: Be prepared to collect escaping fluid.
Completely loosen the transmission fluid cooler tube fittings.
- Remove the bolt and the cooler bypass valve.
