Vehicles Without Active Warmup
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

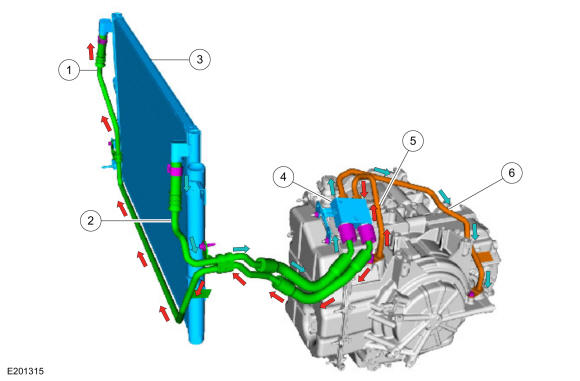

| Item |
Description |
| 1 |
Transmission fluid cooler inlet tube |
| 2 |
Transmission fluid cooler outlet tube |
| 3 |
Transmission fluid cooler (part of A/C condenser) |
| 4 |
Transmission fluid cooler bypass valve |
| 5 |
Transmission fluid outlet tube |
| 6 |
Transmission fluid inlet tube |
