Turbine Shaft Speed (TSS) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control cover. Refer to: Main Control Cover - 2.7L EcoBoost (238kW/324PS) . Refer to: Main Control Cover - 3.5L Duratec (212kW/278PS) .
  2. Disconnect the TSS sensor.
    GFD281218Courtesy of FORD MOTOR COMPANY

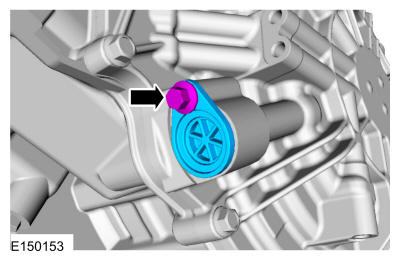

  3. Remove the bolt and the TSS sensor.
GFD281219Courtesy of FORD MOTOR COMPANY
