Transmission Range (TR) Sensor: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Install the TR sensor.

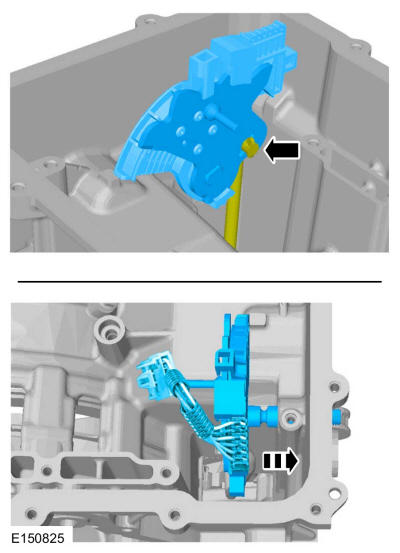

- Position the park pawl actuating rod in the TR sensor.
- Install the TR sensor in the transmission case.

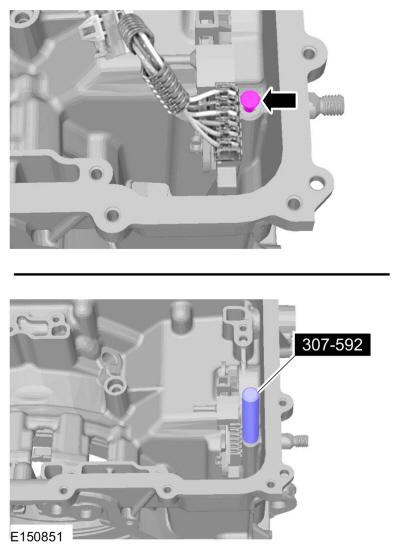

- Using the special tool, install a new TR sensor locking pin. Use Special Service Tool: 307-592 Manual lever Retaining Pin Installer.

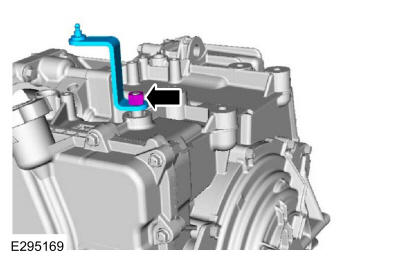

- Install the manual control lever and the nut.
Torque
: 159 lb.in (18 Nm)
- Install the main control valve body. Refer to: Main Control Valve Body .
- Adjust the selector lever cable.
