Roll Restrictor RH - 3.5L Duratec (212kW/278PS): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

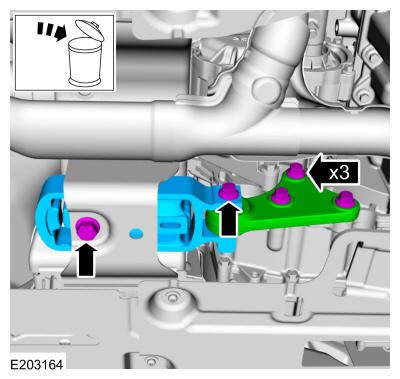

  2. Remove and discard the bolts and remove the roll restrictor and roll restrictor bracket.
GFD281347Courtesy of FORD MOTOR COMPANY
