Roll Restrictor RH - 3.5L Duratec (212kW/278PS): Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

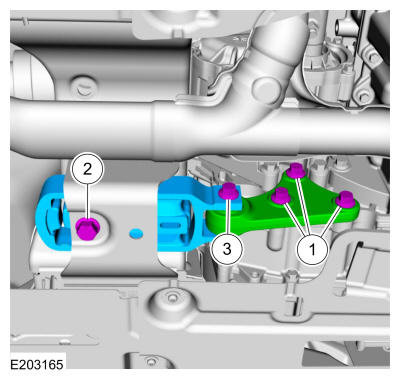

1. Install the roll restrictor and roll restrictor bracket and install the roll restrictor bracket bolts.
  Torque

  : 92 lb.ft (125 Nm)
2. Install the roll restrictor-to-subframe bolt.
  Torque

  : 129 lb.ft (175 Nm)
3. Install the roll restrictor-to-roll restrictor bracket bolt.
  Torque

  : 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
