Roll Restrictor RH - 2.7L EcoBoost (238kW/324PS): Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

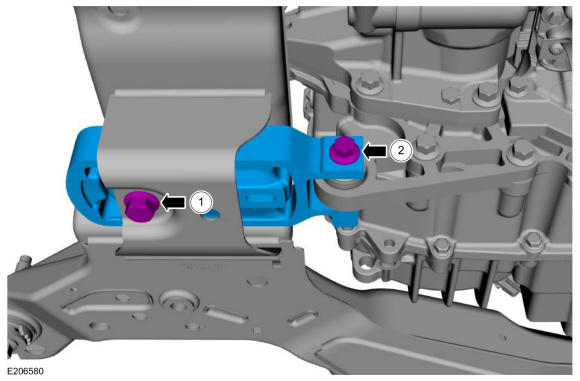

- Install the roll restrictor and bolts.
- Install the roll restrictor-to-subframe bolt.
Torque
: 129 lb.ft (175 Nm)
- Install the roll restrictor-to-roll restrictor bracket bolt.
Torque
: 85 lb.ft (115 Nm)
- Install the roll restrictor-to-subframe bolt.
- Install the LH exhaust flexible pipe. Refer to: Exhaust Flexible Pipe .
