Main Control Valve Body: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control cover. Refer to: Main Control Cover - 3.5L Duratec (212kW/278PS) . Refer to: Main Control Cover . Refer to: Main Control Cover - 2.7L EcoBoost (238kW/324PS) .
  2. Slide the TR sensor electrical connector lock tab over.
    GFD281187Courtesy of FORD MOTOR COMPANY
  3. Disconnect the TSS and OSS sensor electrical connectors.
    GFD281188Courtesy of FORD MOTOR COMPANY
  4. Remove the OSS sensor wire from the retainer.
    GFD281189Courtesy of FORD MOTOR COMPANY
  5. NOTE: Handle the solenoid body with care or damage to the solenoid body may occur.
    NOTE: Note the location of the different length bolts for assembly.

    Remove the bolts and the solenoid body.

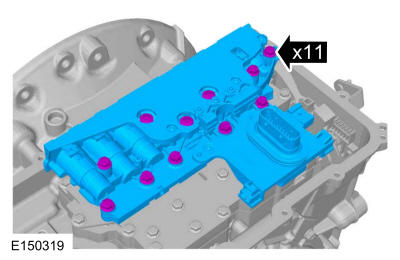

    GFD281190Courtesy of FORD MOTOR COMPANY
  6. Remove the 10 main control valve body bolts and the valve body.

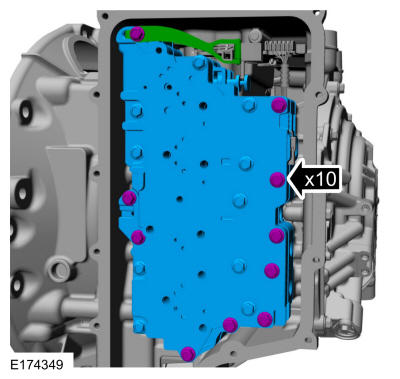

GFD281191Courtesy of FORD MOTOR COMPANY
