Main Control Valve Body: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Be careful not to pinch the TSS, OSS or TR sensor wiring harnesses under the valve body, or damage to the wiring harness or connectors may occur.
    NOTE: Make sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.

    Position the TSS, OSS and TR sensor wiring harnesses aside, align the manual pin in the manual valve, install the main control valve body and loosely install the bolts.

    1. Manual valve
    2. Manual pin

    GFD281192Courtesy of FORD MOTOR COMPANY
  2. NOTE: Tighten the bolts in the sequence shown.

    Install the main control valve body bolts. Tighten the bolts in the sequence shown.

    Torque

    : 106 lb.in (12 Nm)

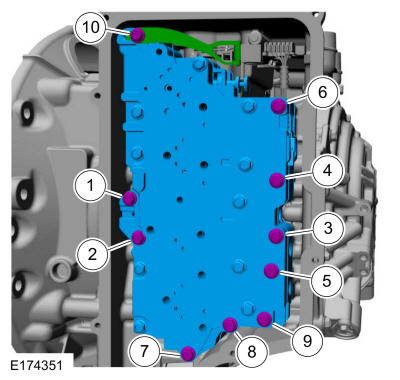

    Fig 1: Main Control Valve Body Bolts Tightening Sequence
    GFD281193Courtesy of FORD MOTOR COMPANY
  3. NOTE: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses behind the solenoid body when positioning the solenoid body in place.

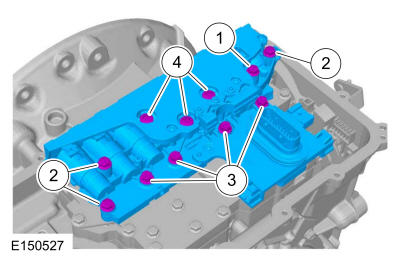

    Install the solenoid body bolts hand-tight.

    1. Bolt

      Distance

      : 1.65 in (42 mm)

    2. Bolt

      Distance

      : 2.48 in (63 mm)

    3. Bolt

      Distance

      : 3.15 in (80 mm)

    4. Bolt

      Distance

      : 3.74 in (95 mm)

    GFD281194Courtesy of FORD MOTOR COMPANY
  4. Tighten the solenoid body bolts in the sequence shown.

    Torque

    : 106 lb.in (12 Nm)

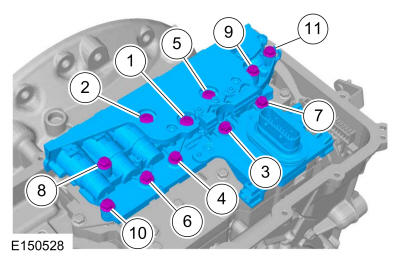

    Fig 2: Solenoid Body Bolts Tightening Sequence
    GFD281195Courtesy of FORD MOTOR COMPANY

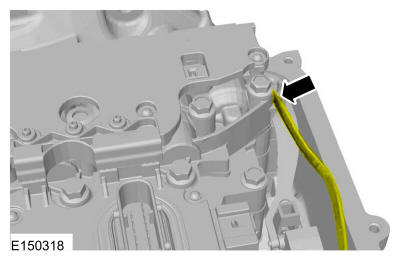

  5. Route the OSS sensor wiring harness into the retainer.
    GFD281189Courtesy of FORD MOTOR COMPANY

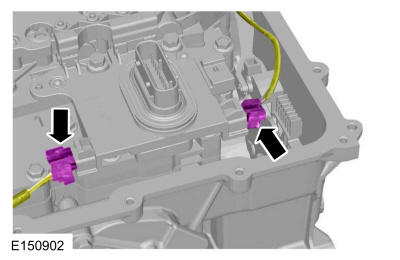

  6. Connect the TSS and OSS sensor electrical connectors.
    GFD281188Courtesy of FORD MOTOR COMPANY

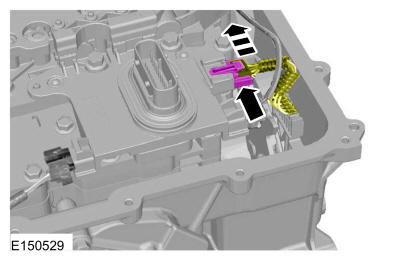

  7. Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.
    GFD281196Courtesy of FORD MOTOR COMPANY
  8. Install the main control cover. Refer to: Main Control Cover - 3.5L Duratec (212kW/278PS) . Refer to: Main Control Cover . Refer to: Main Control Cover - 2.7L EcoBoost (238kW/324PS) .
  9. If a replacement transmission assembly is being installed or a new solenoid body is installed, the PCM must be reflashed with a new solenoid body strategy and identification data file. Refer to: Transmission Strategy Download .
