Main Control Cover - 2.7L EcoBoost (238kW/324PS): Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Clean and inspect the transmission main control cover seal for damage and install new if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the studbolts in the correct locations as noted during disassembly.

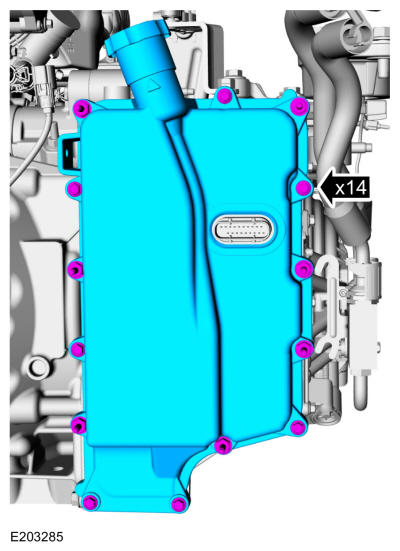

Install the front cover and loosely install the bolts.

Courtesy of FORD MOTOR COMPANY

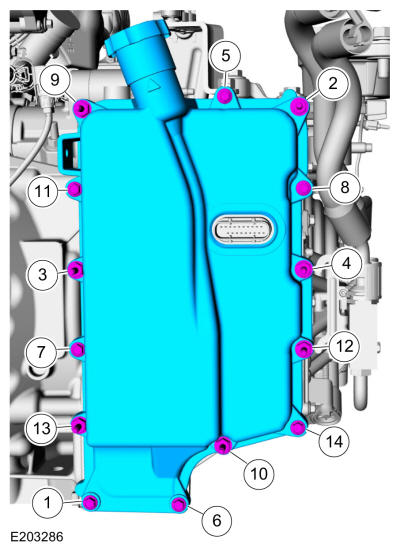

Tighten the main control cover bolts in the sequence shown.
Torque

: 106 lb.in (12 Nm)

Fig 1: Main Control Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

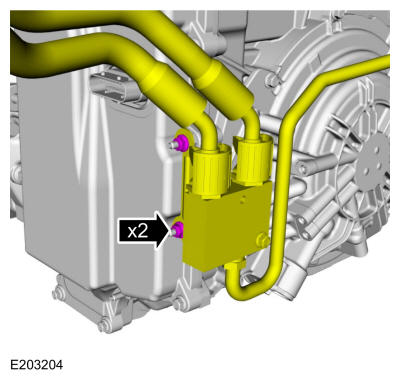

Install the transmission fluid cooler thermal bypass valve nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

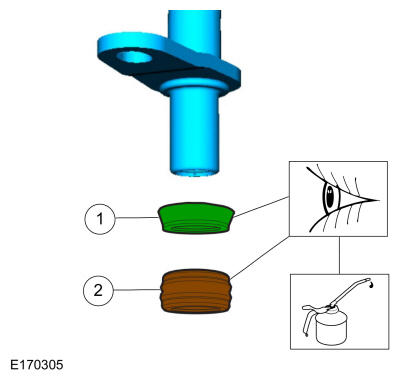

NOTE: Inspect the transmission mounted transmission fluid cooler tube backing ring and seals for damage and install a new backing ring or seal if necessary.
1. Install the backing ring (7J324)
2. Lubricate and install the seal (7D258)
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY

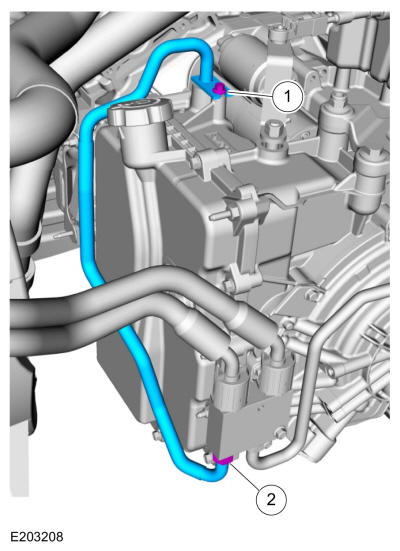

Install the transmission fluid cooler tube.
1. Install a new bolt.
  Torque

  : 97 lb.in (11 Nm)
2. Tighten the fitting.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles equipped with active warm up.

Install the transmission fluid cooler tube.
1. Install a new bolt.
  Torque

  : 97 lb.in (11 Nm)
2. Tighten the fitting.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

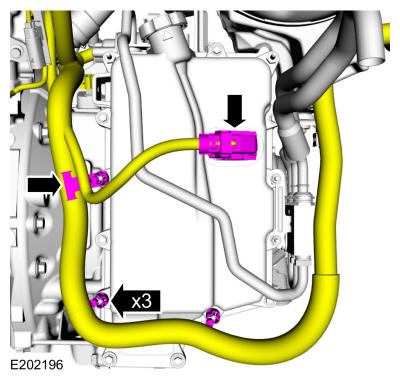

Connect the transmission electrical connector and the wiring retainers.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Charge Air Cooler (CAC) Intake Pipe .
2. Refer to: Air Cleaner .

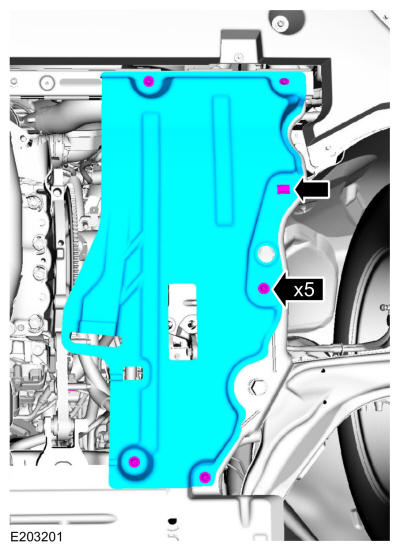

Install the LH undershield. Install the screws and the clip.
Torque

: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
