Transmission Case: Disassembly
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

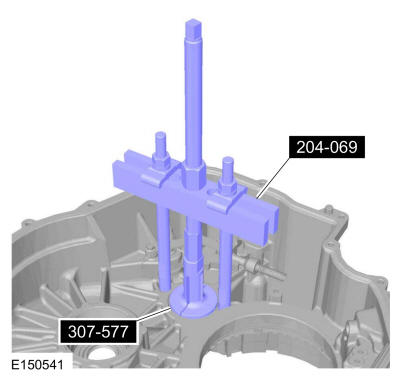

- Using the special tool, remove the transfer shaft roller bearing cup from the transmission case. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub., 307-577 Transfer Gear Bearing race remover.

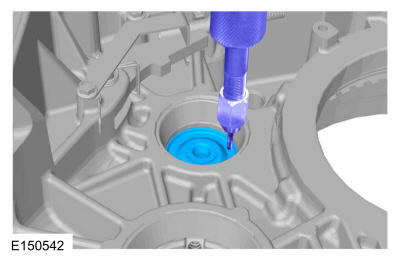

- Punch a hole in the fluid dam. Use the General Equipment: Punch

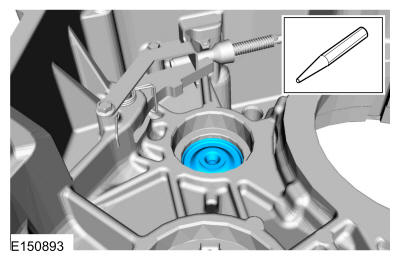

- Use a dent puller to remove the transfer shaft tube fluid dam from the transmission case. Use the General Equipment: Puller
- Using the special tool, remove the differential bearing cup.

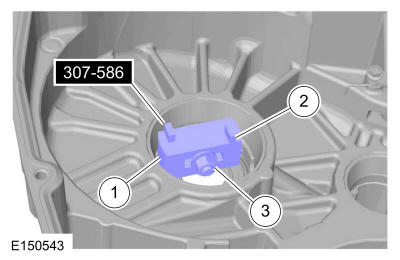

- Position the Differential Bearing Cup Remover 307-586 in the transmission case with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the transmission case. Use Special Service Tool: 307-586 Differential bearing cup remover.
- Expand the Differential Bearing Cup Remover 307-586 by hand.
- While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the transmission case, tighten the nut.

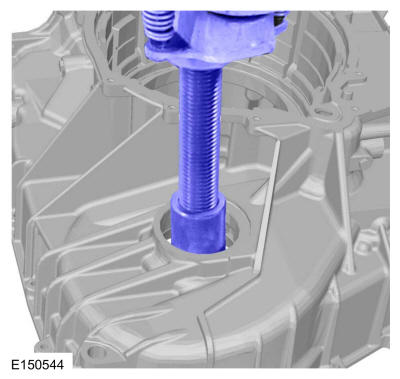

- Using the general equipment, press the differential bearing cup out of the transmission case. Use the General Equipment: Hydraulic Press
- Remove the bolts and the park rod guide plate.
- Remove the park pawl return spring.
- Remove the park pawl shaft and the park pawl.
- Remove the parking pawl abutment pins and the parking pawl abutment.
