Transmission Case: Assembly
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Install the transfer shaft tube fluid dam on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-583 Oil dam seal installer.

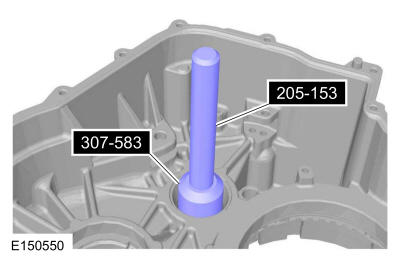

- Using the special tool, install the transfer shaft tube fluid dam. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-583 Oil dam seal installer.

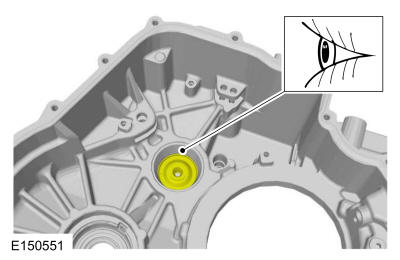

- Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case.

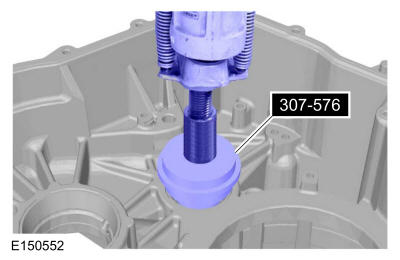

- Using the special tool, install the transfer shaft roller bearing cup. Use Special Service Tool: 307-576 Bearing Cup Installer. Use the General Equipment: Hydraulic Press
- Install the differential bearing cup on the special tool. Use Special Service Tool: 307-689 Installer, Bearing Cup.

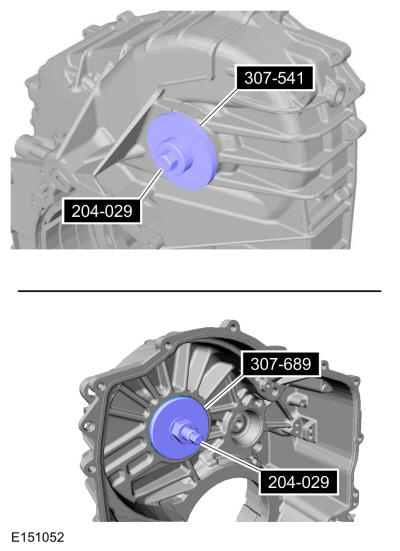

- Using the special tool, install the differential bearing cup. Use Special Service Tool: 204-029 Drawbar., 307-541 Installer, Transfer Gear Bearing., 307-689 Installer, Bearing Cup.
- Install the parking pawl abutment and the parking pawl abutment pins.
- Install the park pawl and the park pawl shaft.
- Install the park pawl return spring.
- Install the park rod guide plate and the bolts.
Torque
: 106 lb.in (12 Nm)
- Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to: Torque Converter Housing .
