Transfer Shaft: Assembly

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park pawl wheel.
    GFD281627Courtesy of FORD MOTOR COMPANY

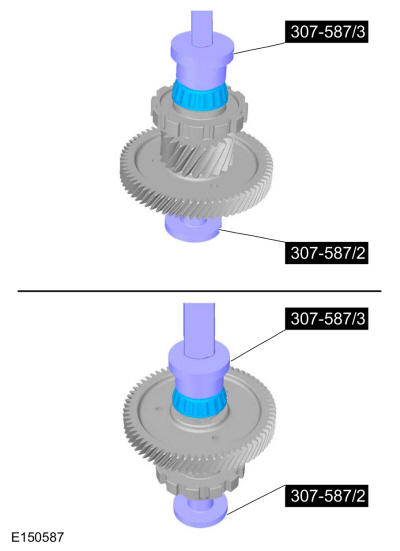

  2. Using the special tool, install the transfer shaft bearings. Use Special Service Tool: 307-587 Differential bearing installer and guide. Use the General Equipment: Hydraulic Press
    GFD281628Courtesy of FORD MOTOR COMPANY
  3. Select a new transfer shaft shim. Refer to: Torque Converter Housing .
