Disassembly And Assembly Of Subassemblies: Differential: Disassembly
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: AWD shown, FWD similar.

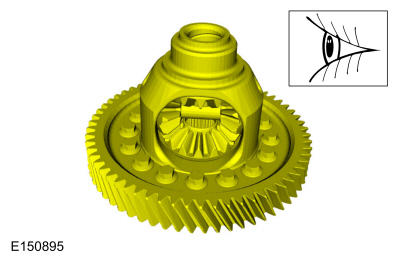

Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.

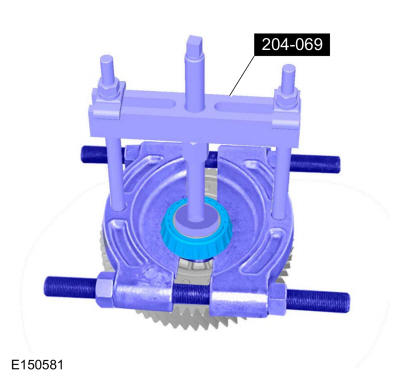

- Using Step Plate 205-D015 and special tools, remove the right differential carrier bearing from the differential assembly. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Bearing Separator
-
NOTE: AWD shown, FWD similar.
Using Step Plate 205-D015 and special tools, remove the left differential carrier bearing from the differential assembly. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Bearing Separator
-
NOTE: If replacing the ring gear, it is also necessary to replace the transfer shaft.
Inspect the differential assembly and the ring gear for damage and install new, if necessary.

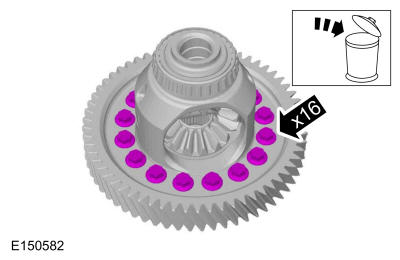

- Remove and discard the differential ring gear bolts.

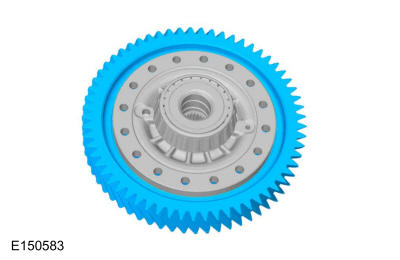

- Remove the differential ring gear.
