Transmission Description

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

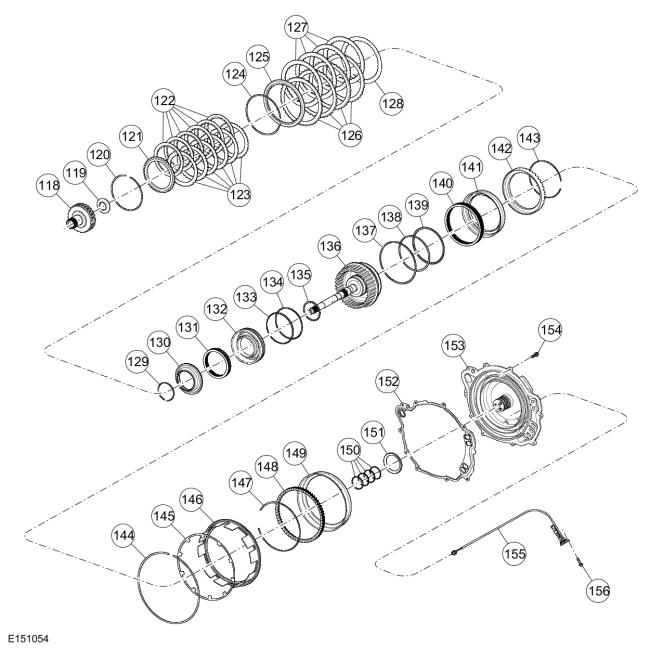

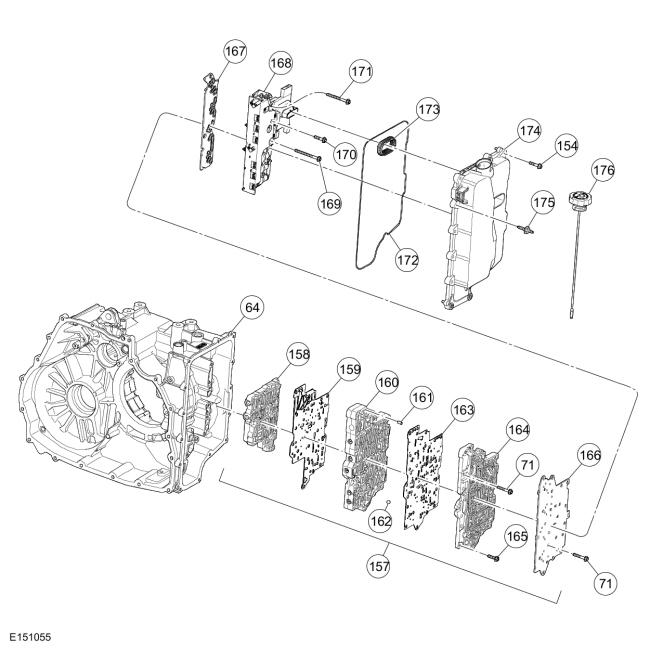

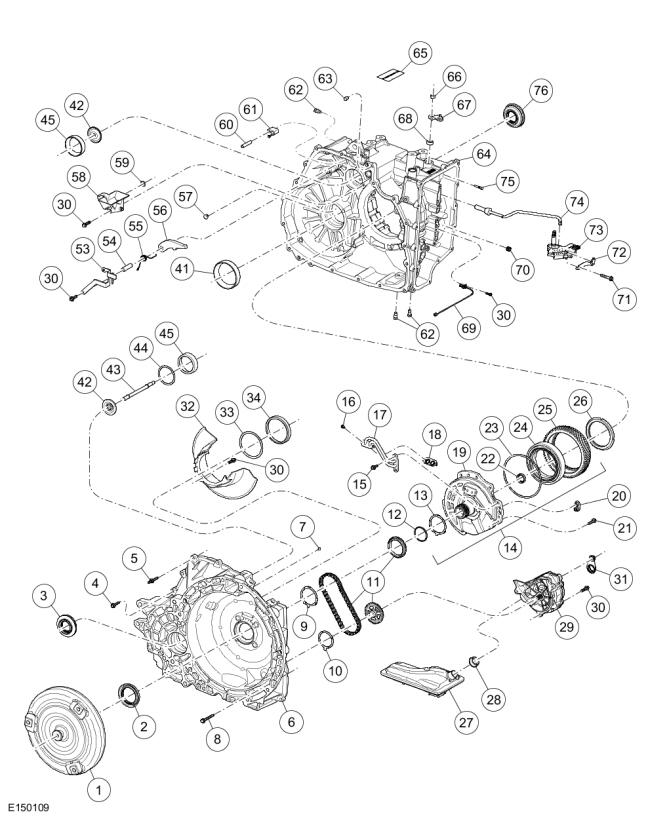

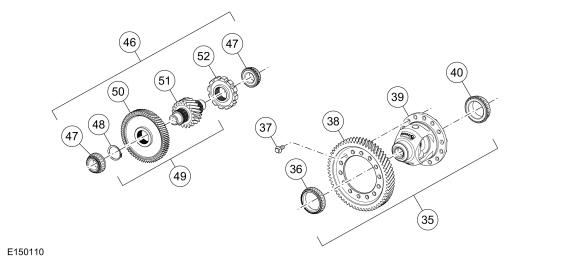

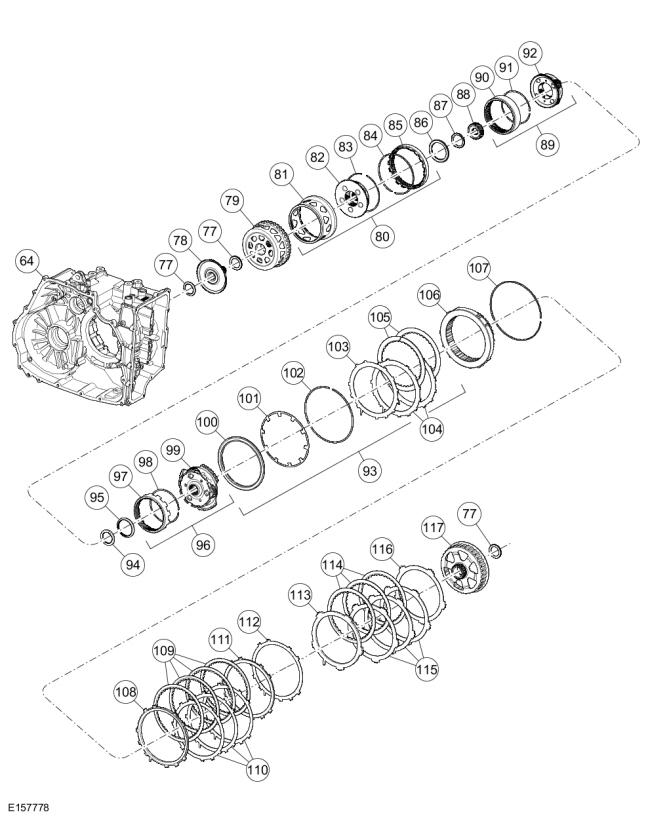

Disassembled Views

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	7902	Torque converter assembly
2	7F401	Seal assembly -- converter hub
3	1177	Seal assembly -- transmission differential (front)
4	7J287	Bolt -- M8 x 30 (converter housing)
5	W704941	Studbolt -- M8 x 30 (converter housing)
6	7005	Torque converter housing
7	7H389	Plug -- transmission orifice cup
8	W711931	Bolt -- torque converter housing
9	7G099	Washer -- drive sprocket thrust
10	7G273	Washer -- driven sprocket support thrust
11	7G249	Sprocket and chain assembly -- pump
12	7L323	Seal -- support assembly-to-torque converter
13	7D014	Washer -- stator support thrust
14	7A108	Support and gear assembly -- stator
15	7J284	Bolt -- hex-head stator support feed tube
16	7J330	Bolt -- Torx®-head stator support feed tube
17	7N147	Transmission fluid feed tube assembly -- stator support
18	7J246	Gasket -- feed tube
19	7F363	Support assembly -- torque converter reactor
20	7J246	Seal -- stator support assembly
21	7J285	Bolt -- M8 x 25
22	7048	Seal assembly -- input shaft
23	7N281	Ring -- input bearing retainer
24	7A452	Bearing assembly -- main drive gear front
25	7F342	Gear -- final drive input
26	7B364	Nut -- bearing retainer
27	7A098	Filter -- transmission fluid
28	7Z302	Seal -- transmission fluid filter
29	7A103	Pump assembly -- transmission fluid
30	7J283	Bolts -- M6 x 25
31	7A248	Seal -- pump
32	7978	Baffle -- sump
33	4067	Shim -- transmission differential bearing
34	4222	Cup -- differential bearing
35	7F465	Differential and gear assembly
36	4221	Bearing -- differential assembly
37	7J286	Bolt -- M10 x 25
38	7F343	Gear -- transmission final drive output
39	4207	Gear and case -- differential assembly
40	4221	Bearing -- differential assembly
41	4222	Cup -- differential bearing
42	7L276	Fluid dams -- transfer shaft tube
43	7A209	Tube -- transfer shaft
44	7H367	Shim -- transfer shaft roller bearing
45	7H344	Cups -- transfer shaft roller bearing
46	7H348	Gear and bearing assembly -- transfer shaft
47	7H338	Cone and roller assembly -- transfer shaft bearing
48	7059	Ring -- transmission final drive retaining
49	7H348	Gear assembly -- transfer shaft
50	7H349	Gear -- transfer shaft input
51	7H346	Gear -- transfer shaft output
52	7A233	Gear -- output shaft parking
53	7D419	Plate -- parking rod guide
54	7D071	Shaft -- parking pawl
55	7D070	Spring -- parking pawl return
56	7A441	Pawl -- parking brake
57	7H389	Plug -- transmission case orifice
58	7J387	Reservoir -- transmission fluid
59	7L280	Seal -- transmission fluid reservoir
60	7D412	Pin -- parking pawl abutment
61	7G101	Abutment -- parking pawl actuator
62	7A010	Plugs -- transmission drain
63	7B362	Pin -- transmission case dowel
64	7005	Case
65	7G342	Tag -- transmission service identification
66	W711892-S441-S441	Nut -- M10
67	7A256	Lever -- manual control
68	7F337	Seal assembly -- manual control shaft
69	7H103	Sensor assembly -- Output Shaft Speed (OSS)
70	7N266	Seal -- valve body
71	7J282	Bolts -- M6 x 63
72	7E332	Spring assembly -- manual valve detent
73	7H557	Sensor -- Transmission Range (TR)
74	7A232	Rod assembly -- park pawl actuator
75	7B210	Pin -- manual control lever
76	1177	Seal -- transmission differential
77	7M102	Bearing assembly -- thrust
78	7B067	Hub assembly -- planetary carrier
79	7D064	Sun gear and shell assembly -- planetary carrier
80	7D491	Carrier and gear assembly -- planetary
81	7M022	Shell -- planetary carrier
82	7N470	Carrier -- planetary gear
83	7L487	Ring -- planetary carrier guide
84	7C122	Snap ring -- planetary carrier
85	7G211	Gear -- front planetary ring
86	7H375	Bearing and race assembly -- forward planetary carrier thrust
87	7F241	Bearing and race assembly -- forward planetary sun gear thrust
88	7G231	Gear -- forward planetary sun
89	7L192	Carrier and ring gear assembly -- forward planetary
90	7A153	Ring gear -- planetary
91	7H318	Retainer -- snap ring
92	7D055	Carrier assembly -- forward planetary
93	--	Clutch assembly -- forward
94	7C096	Bearing -- forward planetary sun gear thrust (rear)
95	7G177	Bearing -- front planetary carrier thrust
96	7D491	Gear and carrier assembly -- front
97	7D392	Ring gear assembly -- forward
98	7H361	Snap ring -- forward planetary ring gear
99	7G226	Carrier -- front planetary gear
100	7A262	Piston assembly -- forward clutch
101	7B070	Spring -- forward clutch piston return
102	7H365	Ring -- forward clutch balance piston snap
103	7B070	Spring -- forward clutch cushion
104	7B442	Plates -- forward clutch (steel)
105	7B164	Plates -- forward clutch (friction)
106	7A089	Clutch -- low one-way
107	7D483	Ring -- low One-Way Clutch (OWC)
108	7B066	Plate -- low reverse clutch pressure
109	7B164	Plates -- low reverse clutch (friction)
110	7B442	Plates -- low reverse clutch (steel)
111	7B066	Plate -- low reverse clutch pressure
112	7J701	Spring -- low reverse clutch cushion
113	7B066	Plate -- intermediate clutch pressure
114	7B164	Plates -- intermediate clutch (friction)
115	7B442	Plates -- intermediate clutch (steel)
116	7E085	Spring -- intermediate clutch cushion
117	7A019	Sun gear and shell assembly -- front planetary gear assembly
118	7H351	Hub assembly -- direct clutch
119	7C096	Bearing -- direct clutch hub thrust
120	7D483	Snap ring -- overdrive clutch
121	7B066	Plate -- overdrive pressure
122	7B164	Plates -- overdrive pressure (friction)
123	7B442	Plates -- overdrive pressure (steel)
124	7D483	Snap ring -- direct clutch
125	7B066	Plate -- direct clutch pressure
126	7B442	Plates -- direct clutch (friction)
127	7B164	Plates -- direct clutch (steel)
128	7E085	Spring -- direct clutch wave
129	7C122	Snap ring -- balance piston
130	7H360	Piston -- balance
131	7F222	Spring -- overdrive clutch piston return
132	7A262	Piston -- overdrive clutch
133	7A548	Seal -- overdrive clutch piston outer (front)
134	7A548	Seal -- overdrive clutch piston outer (rear)
135	7A548	Seal -- overdrive clutch piston inner
136	7G384	Hub and shaft assembly -- input direct and overdrive clutch
137	7A548	Seal -- direct clutch piston outer
138	7C099	Seal -- direct clutch piston inner (front)
139	7C099	Seal -- direct clutch piston inner (rear)
140	7F235	Return spring assembly -- direct clutch
141	7A262	Piston assembly -- direct clutch
142	7F283	Cylinder -- direct clutch piston
143	7C122	Snap ring -- direct clutch piston cylinder
144	7C122	Snap ring -- reverse clutch piston return spring
145	7B070	Spring -- reverse clutch piston return
146	7D402	Piston -- reverse clutch
147	7D483	Snap ring -- intermediate clutch return spring
148	7F222	Spring -- intermediate clutch piston return
149	700000	Piston -- intermediate clutch
150	7D019	Seals -- transmission cover
151	7H026	Bearing -- turbine shaft thrust
152	7223	Gasket -- cover assembly
153	7222	Cover assembly
154	7J289	Bolts -- M6 x 30
155	7M101	Sensor assembly -- Turbine Shaft Speed (TSS)
156	7J356	Bolt -- M6 x 25
157	7A100	Body assembly -- main control valve
158	7A099	Body assembly -- lower main control valve
159	7Z490	Plate assembly -- lower valve body separator
160	7A091	Body -- main control valve
161	7B431	Pin -- transfer plate alignment
162	7E195	Ball -- check
163	7Z490	Plate -- transfer plate separator
164	7H195	Plate -- transfer
165	7J291	Bolt -- M6 x 35
166	7Z490	Cover assembly -- main control valve body
167	7H200	Plate -- solenoid filter
168	7Z369	Body assembly -- solenoid
169	7J295	Bolt -- M6 x 95
170	7J364	Bolt -- M6 x 42
171	7J293	Bolt -- M6 x 80
172	7F396	Gasket -- main control cover
173	7B329	Seal -- solenoid body-to-main control cover
174	7G004	Cover assembly -- main control
175	W708442	Stud -- hex flange
176	7A020	Indicator -- transmission fluid level (transmission vent is part of the indicator cap)

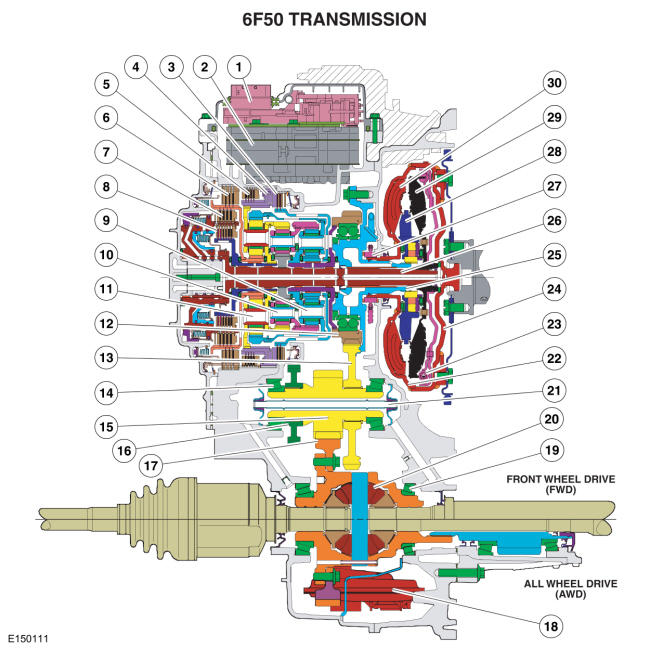

Component Location

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Solenoid body
2	Valve body
3	Forward clutch (clutch brake 1, 2, 3, 4)
4	Low One-Way Clutch (OWC)
5	Low/reverse clutch (clutch brake L/R)
6	Intermediate clutch (clutch brake 2, 6)
7	Direct clutch (drive clutch 3, 5, R)
8	Overdrive clutch (drive clutch 4, 5, 6)
9	Front planetary assembly
10	Center planetary assembly
11	Rear planetary assembly
12	Differential transfer drive gear
13	Differential transfer driven gear
14	Transfer shaft roller bearing and cup
15	Differential drive pinion gear
16	Park gear
17	Differential ring gear
18	Fluid filter
19	Differential roller bearing and cup
20	Differential carrier gear and case assembly
21	Differential lube tube
22	Torque converter
23	TCC
24	Torque converter cover
25	Support assembly (converter reactor)
26	Turbine/input shaft
27	Chain and sprocket pump driver
28	Reactor
29	Turbine
30	Impeller
