Turbine Shaft Speed (TSS) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner. Refer to: Air Cleaner .

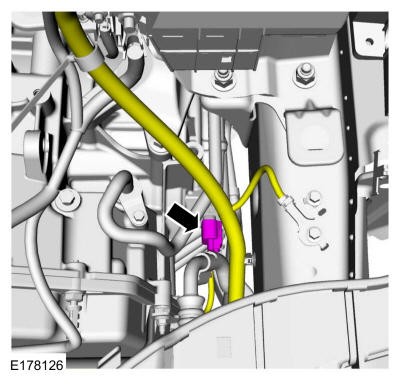

- Disconnect the TSS sensor electrical connector.

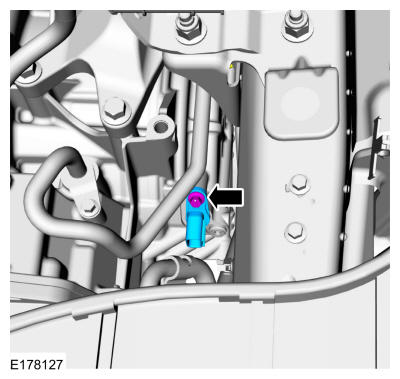

- Remove the bolt and remove the TSS sensor.
Torque
: 89 lb.in (10 Nm)
