Transmission Internal Wiring Harness Frame: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the main control cover. Refer to: Transmission Internal Wiring Harness Frame . Refer to: Main Control Cover .
- Disconnect the TR sensor electrical connector.
- Disconnect the OSS sensor electrical connector.
- Remove the main control-to-cover seal.
-
NOTE: Be careful not to bend or twist the transmission internal wiring harness frame or the solenoid terminals when removing the transmission internal wiring harness frame or damage can occur.

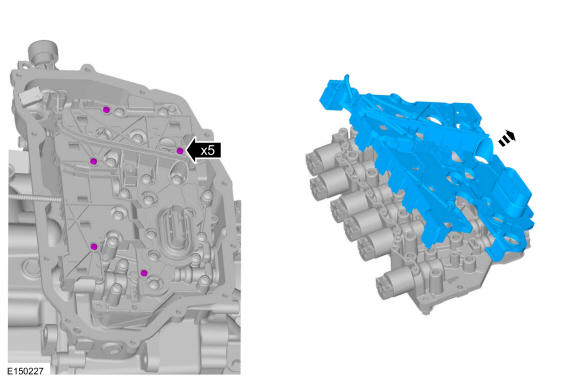

Remove the transmission internal wiring harness frame screws and the transmission internal wiring harness frame from the solenoids by lifting it straight up evenly.
