Transmission Internal Wiring Harness Frame: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

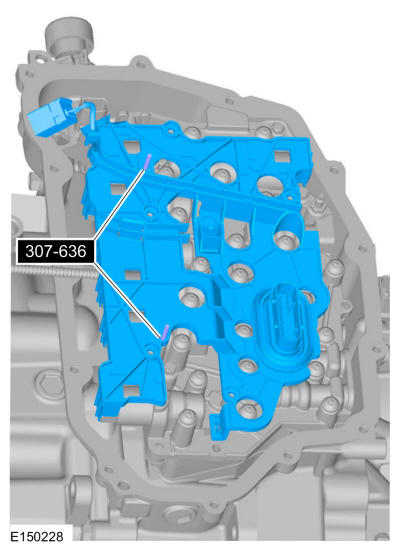

- Install the special tools in the solenoid body to align the transmission internal wiring harness frame during installation. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.

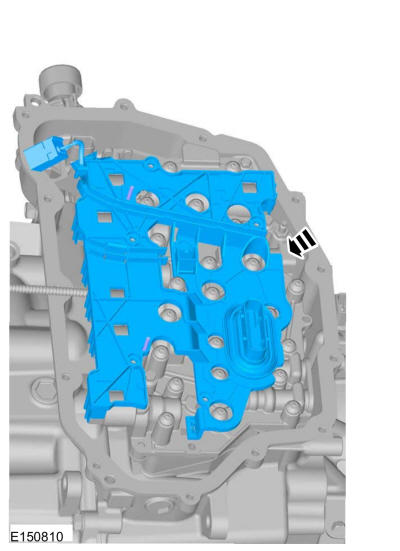

- Position the transmission internal wiring harness frame on the special tools and carefully install the transmission internal wiring harness frame by pushing straight down into the solenoids.

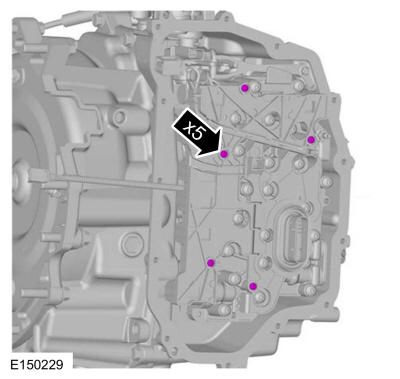

- Install the transmission internal wiring harness frame screws.
Torque
: 31 lb.in (3.5 Nm)

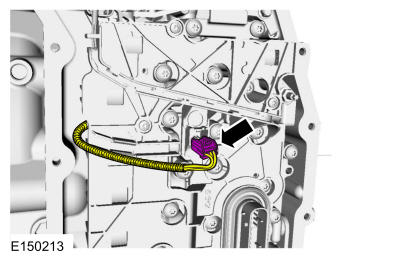

- Connect the OSS sensor electrical connector.

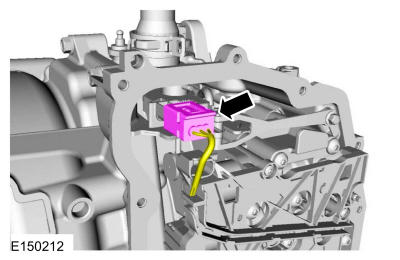

- Connect the TR sensor electrical connector.

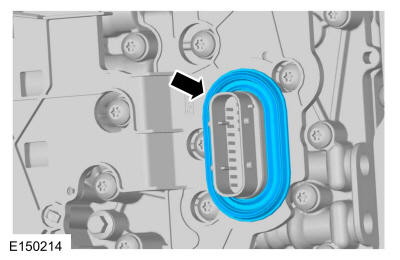

- Install the main control-to-cover seal.
- Install the main control cover. Refer to: Transmission Internal Wiring Harness Frame . Refer to: Main Control Cover .
