Removal And Installation: Solenoid: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

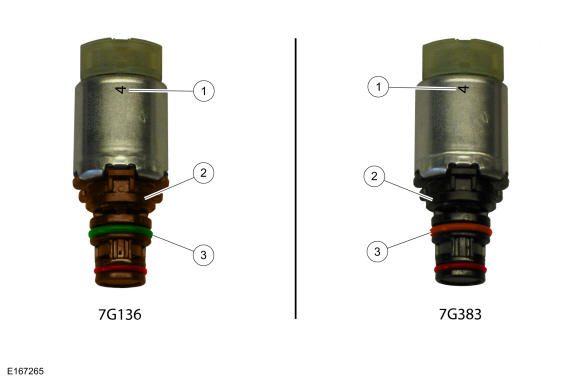

  1. NOTE: Verify replacement component matches original component:

    1. Number
    2. Color
    3. Color

    GFD280662Courtesy of FORD MOTOR COMPANY

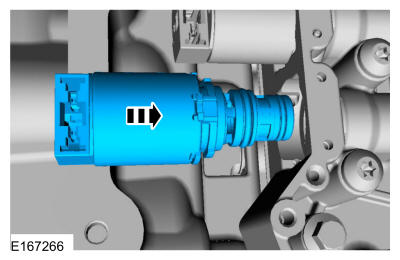

  2. NOTE: Make sure the component is installed in the position noted before removal.

    Install the solenoid(s) in the solenoid body.

    GFD280663Courtesy of FORD MOTOR COMPANY

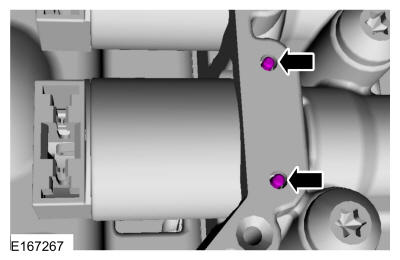

  3. Install the solenoid retaining pin(s).
    GFD280664Courtesy of FORD MOTOR COMPANY
  4. Install the transmission internal wiring harness frame. Refer to: Transmission Internal Wiring Harness Frame .
