Selector Shaft Seal: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the TR sensor. Refer to: Transmission Range (TR) Sensor .

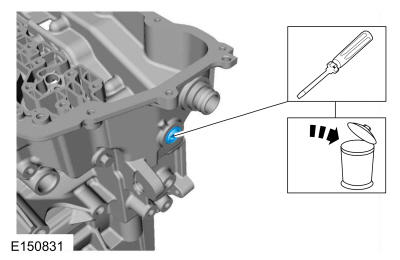

  2. Remove and discard the selector shaft seal. Use the General Equipment: Flat Headed Screw Driver
GFD280657Courtesy of FORD MOTOR COMPANY
