Selector Shaft Seal: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

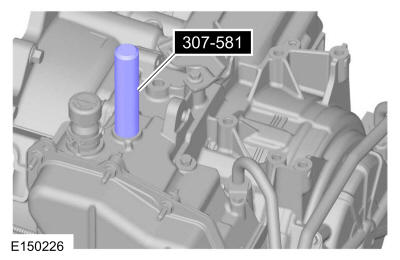

  1. Using the special tool, install the new selector shaft seal. Use Special Service Tool: 307-581 Manual lever seal installer.
    GFD280658Courtesy of FORD MOTOR COMPANY
  2. Install the TR sensor. Refer to: Transmission Range (TR) Sensor .
