Roll Restrictor RH: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Tighten in the sequence shown.

    Install the roll restrictor and the bracket and install the new bolts.

    1. Torque

      : 92 lb.ft (125 Nm)

    2. Torque

      : 92 lb.ft (125 Nm)

    3. Torque

      : 92 lb.ft (125 Nm)

    4. Torque

      : 85 lb.ft (115 Nm)

    5. Torque

      : 111 lb.ft (150 Nm)

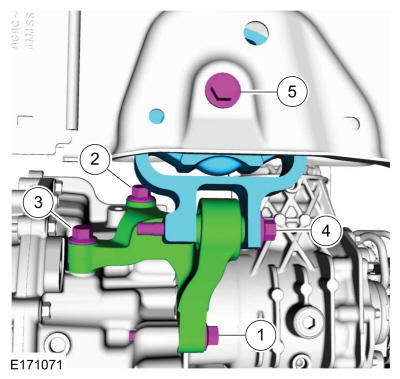

    Fig 1: Roll Restrictor Bolt Tightening Sequence
    GFD280655Courtesy of FORD MOTOR COMPANY
  2. Install the underbody shields and the retainers.
    GFD280653Courtesy of FORD MOTOR COMPANY
  3. Install the underbody shields and the retainers.
GFD280652Courtesy of FORD MOTOR COMPANY
