Main Control Valve Body: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control cover. Refer to: Main Control Cover .
  2. Disconnect the TR sensor electrical connector.
    GFD280556Courtesy of FORD MOTOR COMPANY
  3. Disconnect the OSS sensor electrical connector.
    GFD280557Courtesy of FORD MOTOR COMPANY
  4. Remove the main control-to-cover seal.
    GFD280558Courtesy of FORD MOTOR COMPANY
  5. NOTE: The main control should be handled with care or damage to the main control may occur.
    NOTE: Note the location of the short and long main control-to-transmission case bolts for reassembly.

    Remove the main control nut, the main control-to-transmission case bolts and the main control.

    GFD280559Courtesy of FORD MOTOR COMPANY

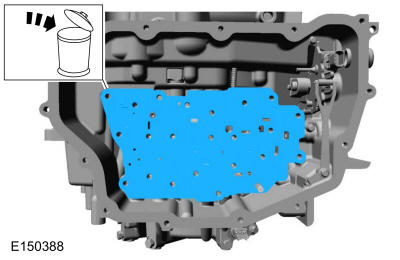

  6. Remove and discard the main control-to-transmission case separator plate.
    GFD280560Courtesy of FORD MOTOR COMPANY

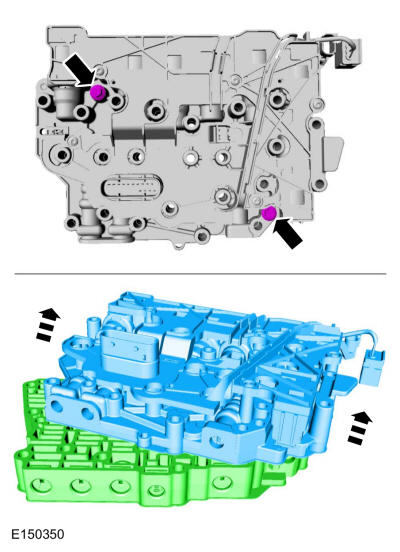

  7. Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.
    GFD280561Courtesy of FORD MOTOR COMPANY

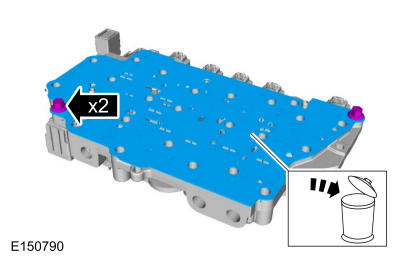

  8. Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.
GFD280562Courtesy of FORD MOTOR COMPANY
