Main Control Cover: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

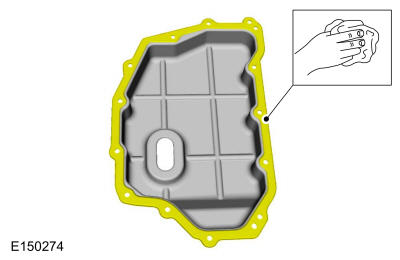

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY

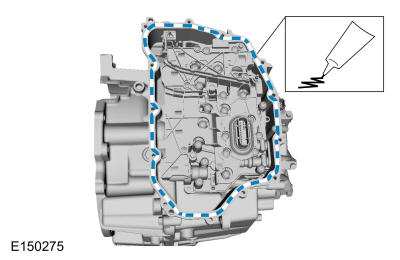

Apply Ultra Silicone Sealant to the main control sealing surface of the transmission case.
Material

: Motorcraft® Ultra Silicone Sealant / TA-29

Courtesy of FORD MOTOR COMPANY
NOTE: Install the stud bolts in the locations noted during disassembly.

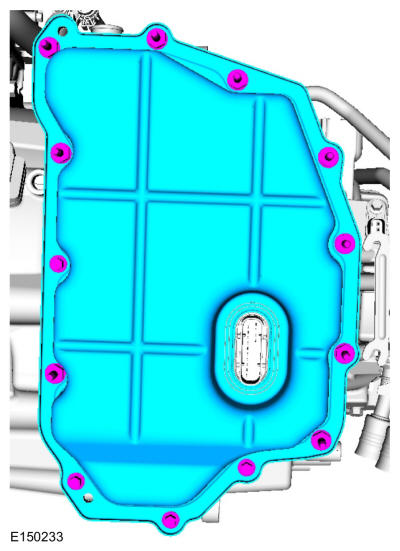

Install the main control cover, the bolts and the stud bolts.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

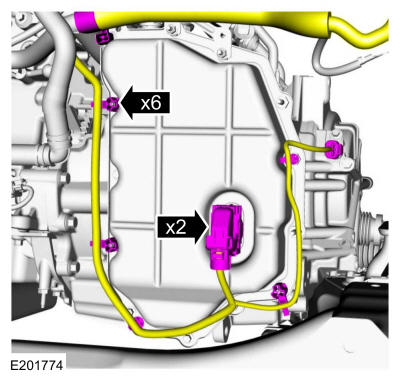

Connect the transmission electrical connectors and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Connect the CAC tube.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary.

Install the transmission fluid cooler tube backing ring and seal and the transmission fluid cooler tube bracket.
1. NOTE: Lubricate the transmission fluid cooler tube seal.

  Seal (7D285)

  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
2. Backing ring (7J324)
3. Install the transmission fluid cooler tube bracket nuts.
  Torque

  : 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube stud bolt.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

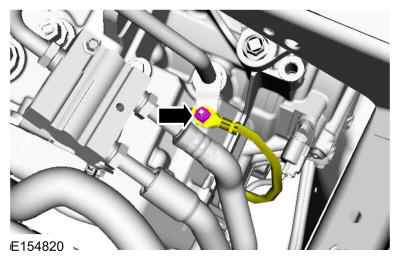

Install the ground cable and nut.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the air cleaner assembly. Refer to: Air Cleaner .
Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
