Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

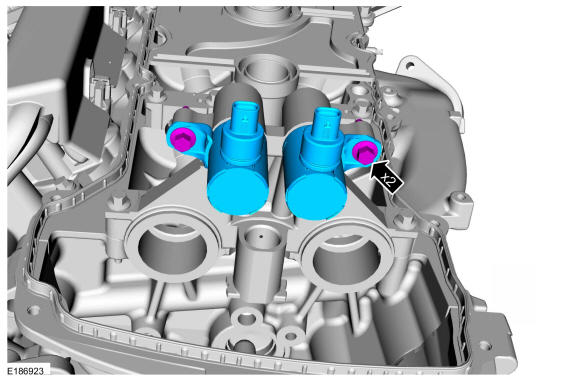

RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the RH valve cover. Refer to: Valve Cover RH .
- Remove the bolts and the VCT oil control solenoids.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 20 deg.

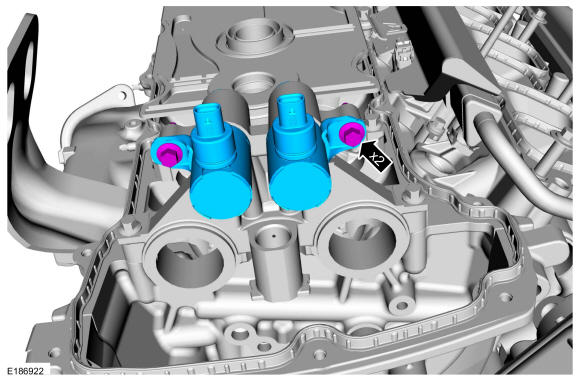

LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the LH valve cover. Refer to: Valve Cover LH .
- Remove the bolts and the VCT oil control solenoids.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 20 deg.
