Powertrain Control Module (PCM): Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description . Use the General Equipment: Ford Diagnostic Equipment
-

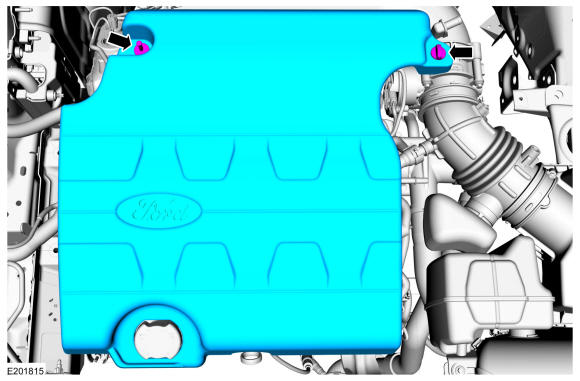

- Remove the pushpin and screw. Remove the engine appearance cover.

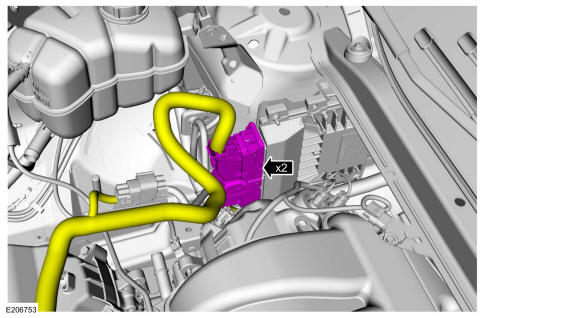

- Disconnect the PCM harness connectors.

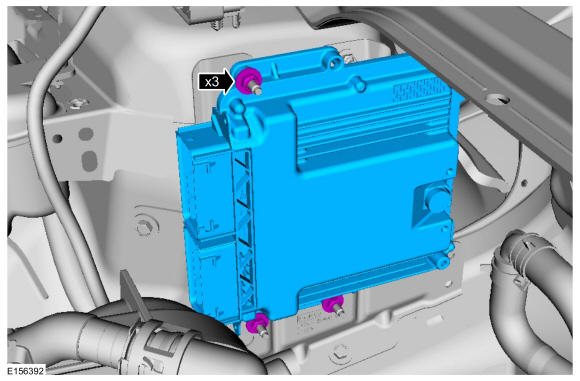

- Remove the retainers and the PCM.
Torque: 89 lb.in (10 Nm)
