Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
- Remove the pushpin and screw. Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|

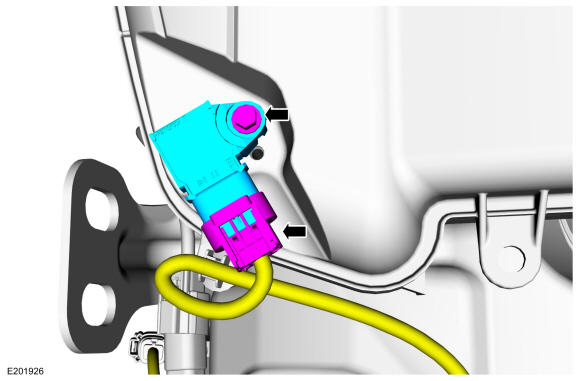

- Disconnect the electrical connector, remove the screw and the MAPT sensor.
Torque: 35 lb.in (4 Nm)
 Courtesy of FORD MOTOR COMPANY
|
