Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH catalytic converter. Refer to: Catalytic Converter LH .
- Remove the nut and position aside the bracket.
Torque: 93 lb.in (10.5 Nm)

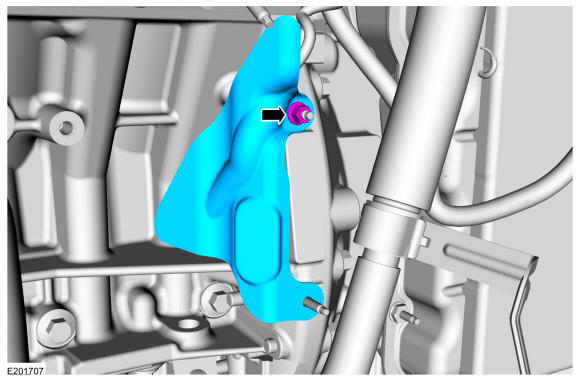

- Remove the nut and heat shield.
Torque: 93 lb.in (10.5 Nm)
- Position aside the CKP sensor access plug.
-

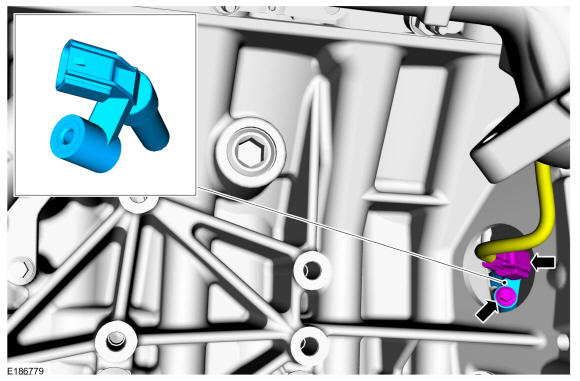

NOTE: Remove the bolt and the CKP sensor from the bell housing before disconnecting the electrical connector to prevent the CKP sensor from falling in the bell housing.
Remove the bolt, disconnect the CKP sensor electrical connector and remove the sensor.
Torque: 89 lb.in (10 Nm)
