Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

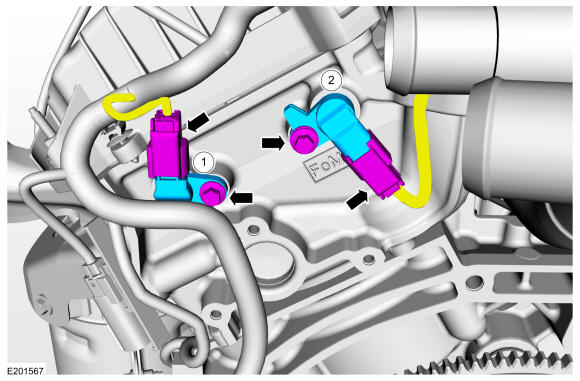

RH (right-hand) Camshaft Position (CMP) Sensors
- Remove the battery. Refer to: Battery .
-
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 89 lb.in (10 Nm)
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 89 lb.in (10 Nm)

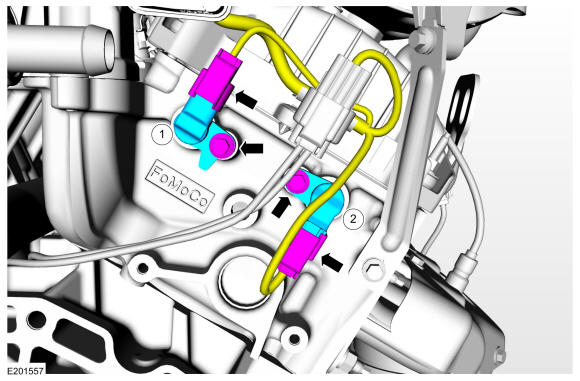

LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
- Remove the air cleaner. Refer to: Air Cleaner .
-
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 89 lb.in (10 Nm)
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 89 lb.in (10 Nm)
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
