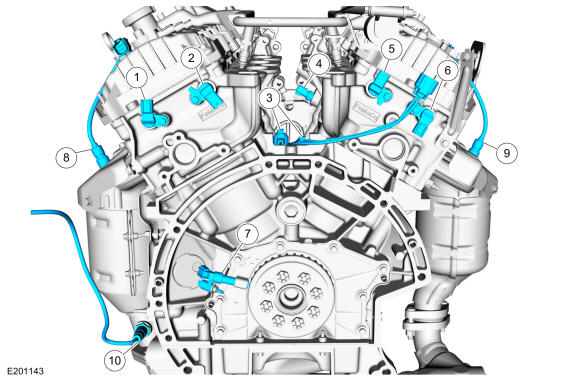

Electronic Engine Controls - Rear
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Left hand CMP exhaust sensor |
| 2 |
Left hand CMP intake sensor |
| 3 |
KS |
| 4 |
CHT sensor |
| 5 |
Right hand CMP intake sensor |
| 6 |
Right hand CMP exhaust sensor |
| 7 |
CKP sensor |
| 8 |
HO2S Left hand |
| 9 |
HO2S Right hand |
| 10 |
Catalyst monitor sensors |
