Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

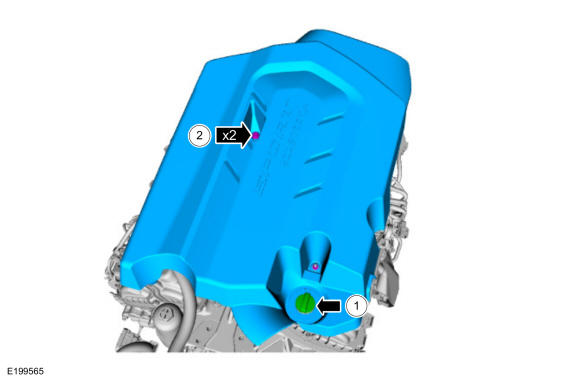

- Remove the oil filler cap.
- Remove the nut and bolt and remove the engine appearance cover.
  Torque: 42 lb.in (4.8 Nm)
Courtesy of FORD MOTOR COMPANY

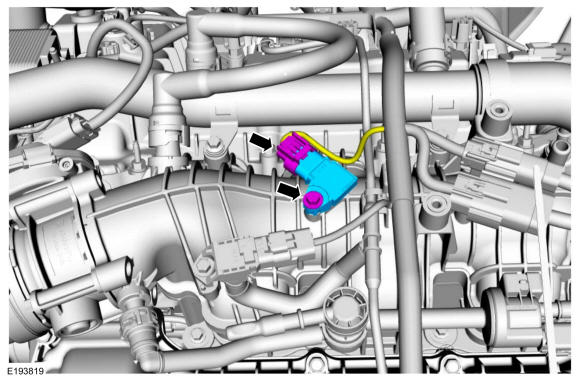

Disconnect the electrical connector, remove the retainers and the MAP sensor.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
