Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

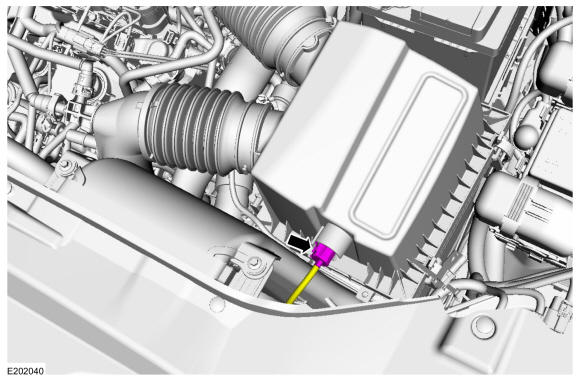

  1. Disconnect the IAT electrical connector.
    GFD280329Courtesy of FORD MOTOR COMPANY
  2. Remove the IAT sensor.
GFD280330Courtesy of FORD MOTOR COMPANY
