Heated Oxygen Sensor (HO2S): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All sensors

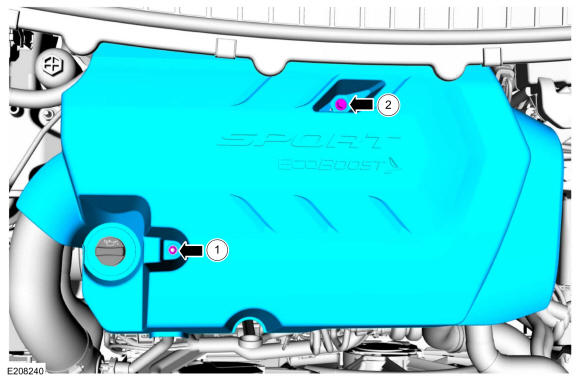

    • Remove the nut.

      Torque: 42 lb.in (4.8 Nm)

    • Remove the bolt and the engine appearance cover.

      Torque: 93 lb.in (10.5 Nm)

    GFD280322Courtesy of FORD MOTOR COMPANY

    Right hand Heated oxygen sensor

  2. Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
  3. Remove the RH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

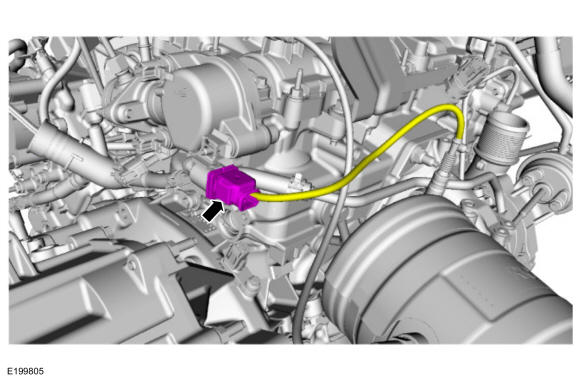

  4. Disconnect the HO2S electrical connector.
    GFD280323Courtesy of FORD MOTOR COMPANY

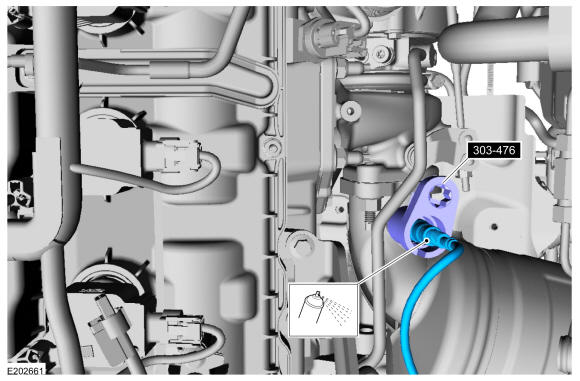

  5. Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

    GFD280324Courtesy of FORD MOTOR COMPANY

    Left hand Heated oxygen sensor

  6. Disconnect the HO2S electrical connector.
    GFD280325Courtesy of FORD MOTOR COMPANY
  7. Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

GFD280326Courtesy of FORD MOTOR COMPANY
