Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH fuel rail. Refer to: Fuel Rail .

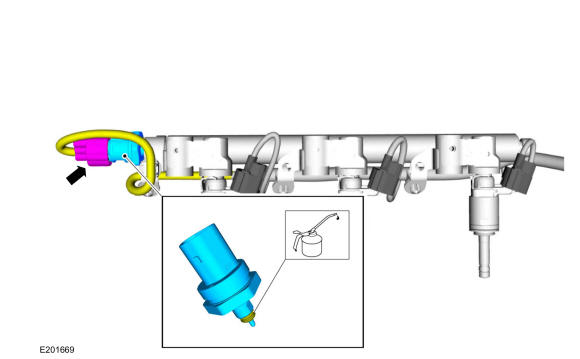

- Disconnect the electrical connector, remove the FRP sensor.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 19°
