Engine Oil Pressure (EOP) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

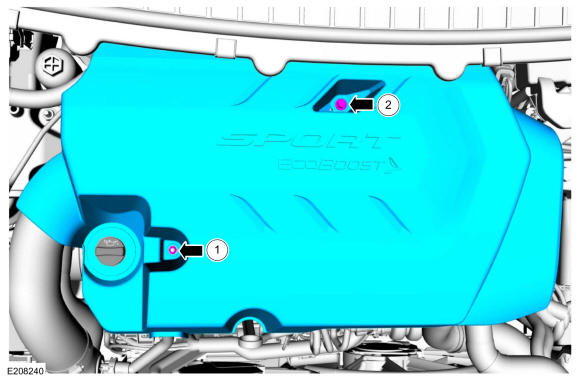

- Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
- Remove the bolt and remove the engine appearance cover.
  Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Remove the RH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

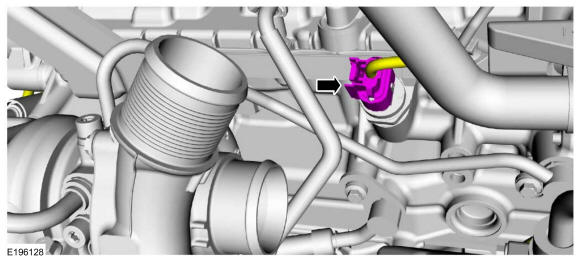

Disconnect the EOP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

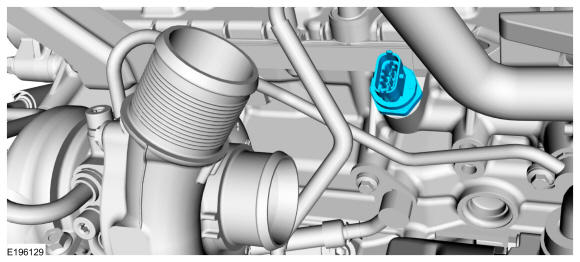

Remove the EOP sensor.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
