Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-

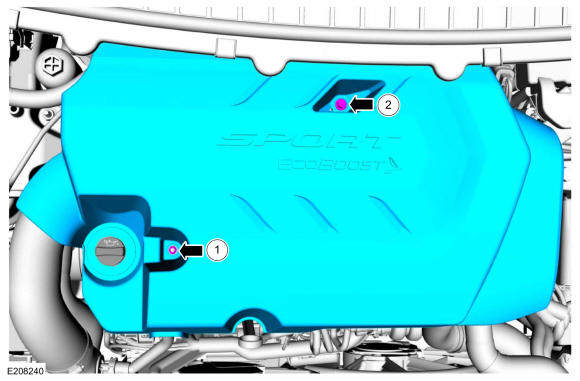

- Remove the nut.
Torque: 42 lb.in (4.8 Nm)
- Remove the bolt and remove the engine appearance cover.
Torque: 93 lb.in (10.5 Nm)

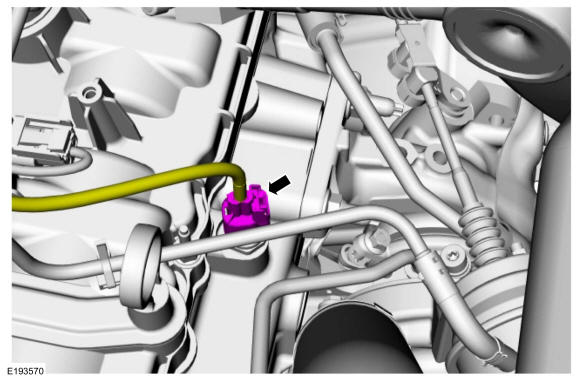

- Remove the nut.
- Disconnect the CHT sensor electrical connector.
-

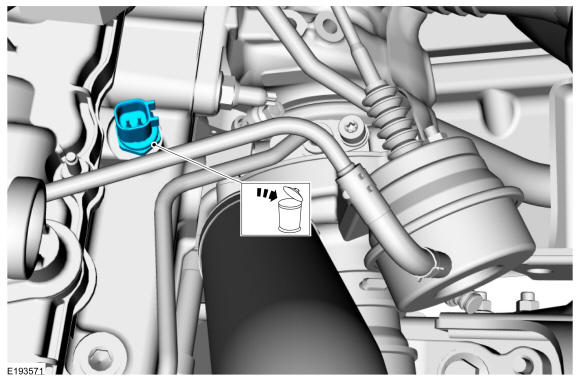

NOTE: Do not reuse the CHT sensor, install a new sensor.
Remove and discard the CHT sensor.
Torque: 106 lb.in (12 Nm)
