Electronic Engine Controls- RH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

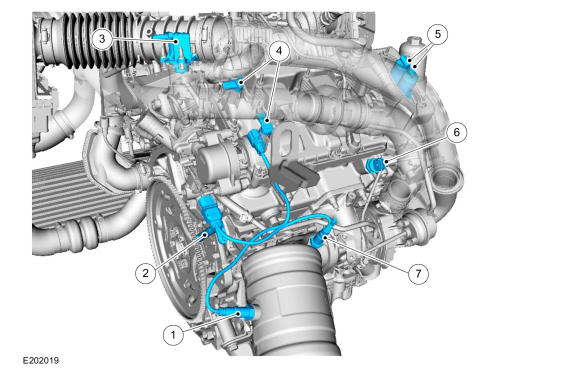

| Item |
Description |
| 1 |
Right hand Catalyst monitor sensor |
| 2 |
CKP sensor |
| 3 |
Turbocharger bypass valve |
| 4 |
Right hand CMP sensors |
| 5 |
Right hand VCT oil control solenoids |
| 6 |
EOP sensor |
| 7 |
Right hand HO2S |
