Wipers And Washers

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

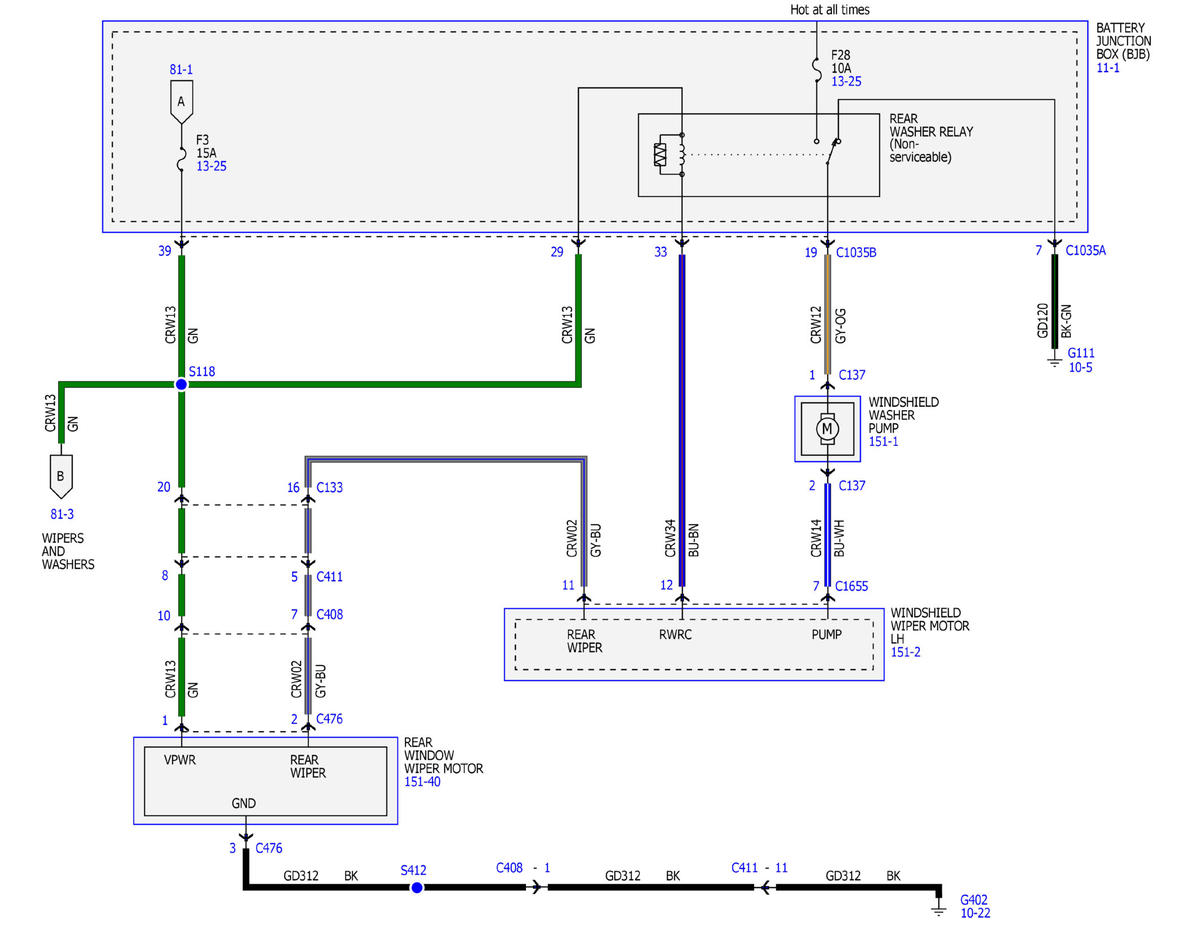

Fig 1: Wipers and Washers Wiring Diagrams (1 of 3)

Courtesy of FORD MOTOR COMPANY

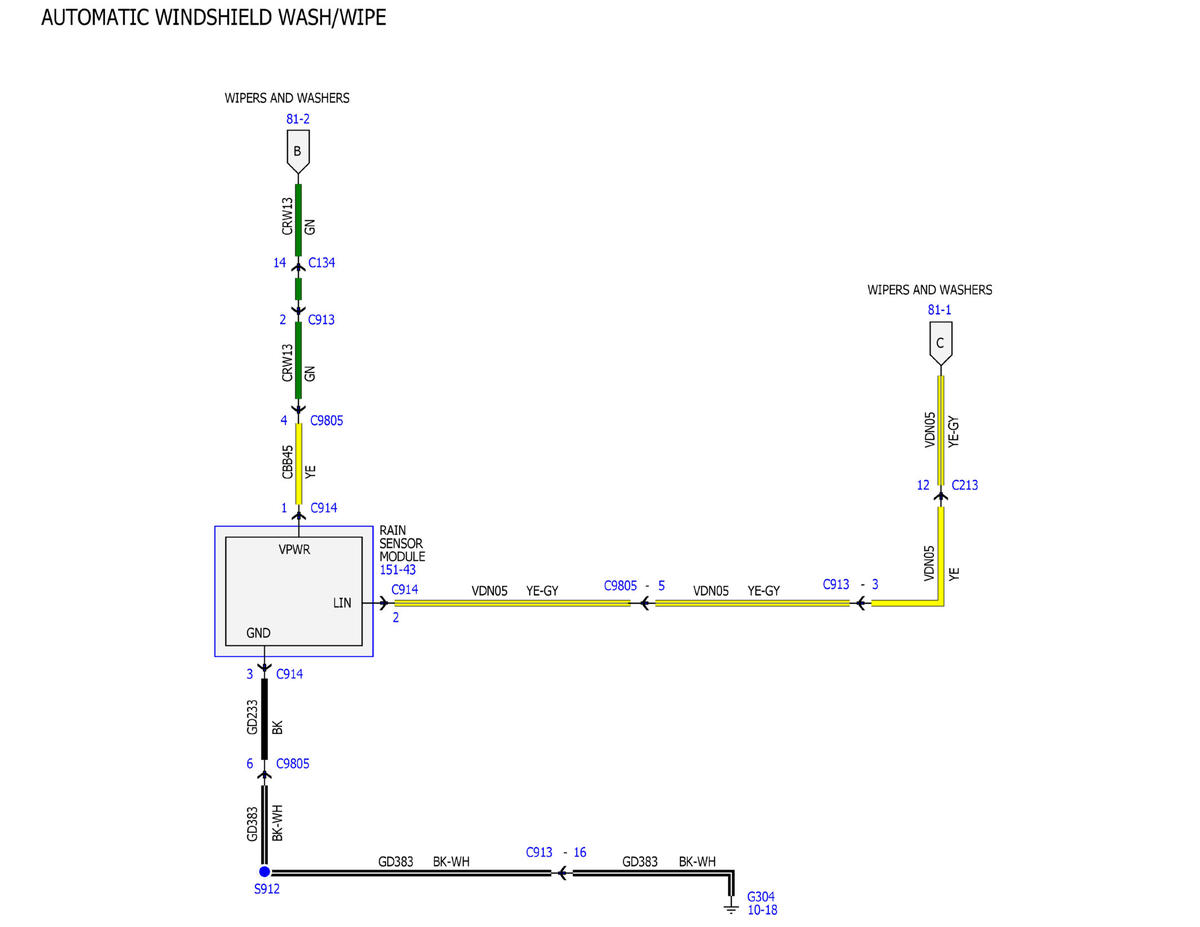

Fig 2: Wipers and Washers Wiring Diagrams (2 of 3)

Courtesy of FORD MOTOR COMPANY

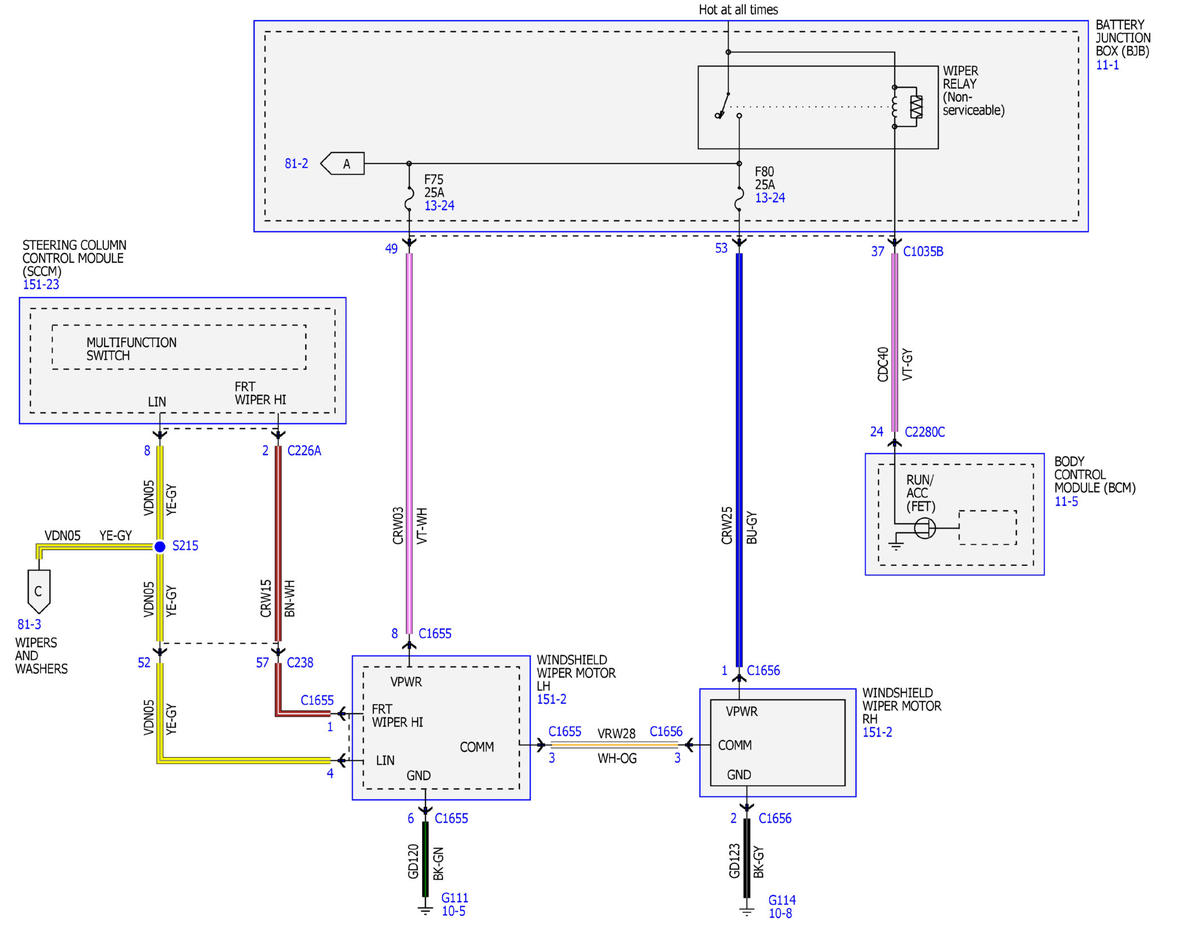

Fig 3: Wipers and Washers Wiring Diagrams (3 of 3)

Courtesy of FORD MOTOR COMPANY
