Transmission Controls - 6F35

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

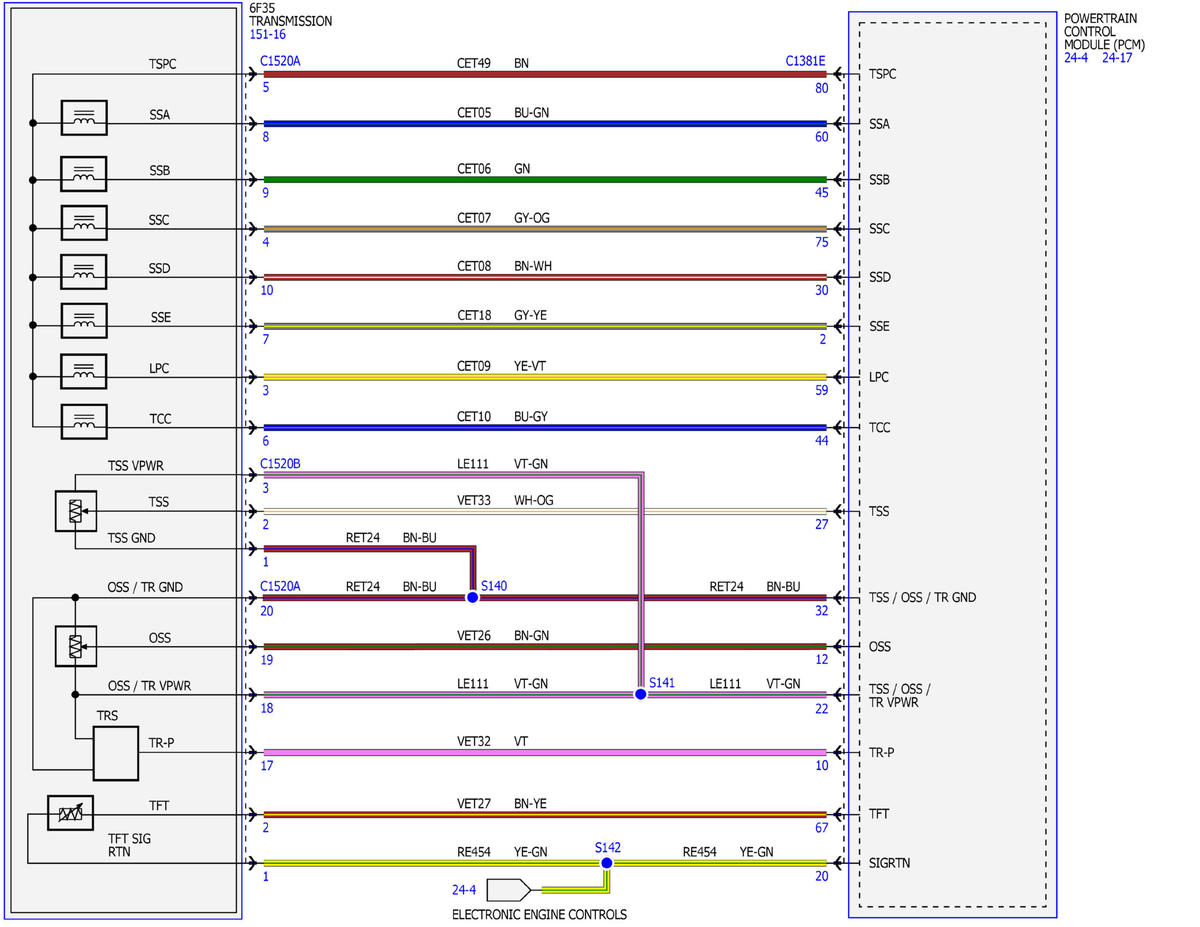

Fig 1: Transmission Controls - 6F35 Wiring Diagrams (1 of 4)

Courtesy of FORD MOTOR COMPANY

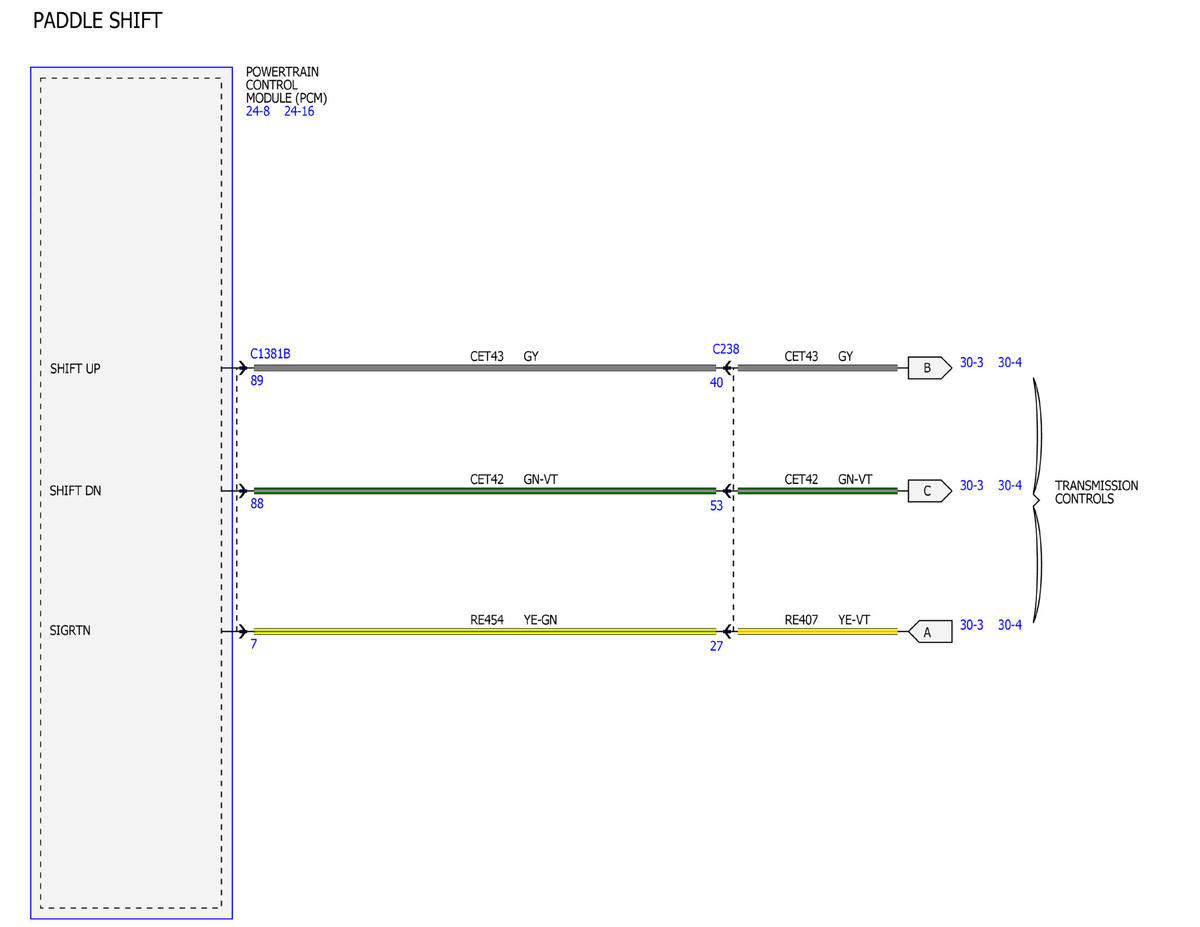

Fig 2: Transmission Controls - 6F35 Wiring Diagrams (2 of 4)

Courtesy of FORD MOTOR COMPANY

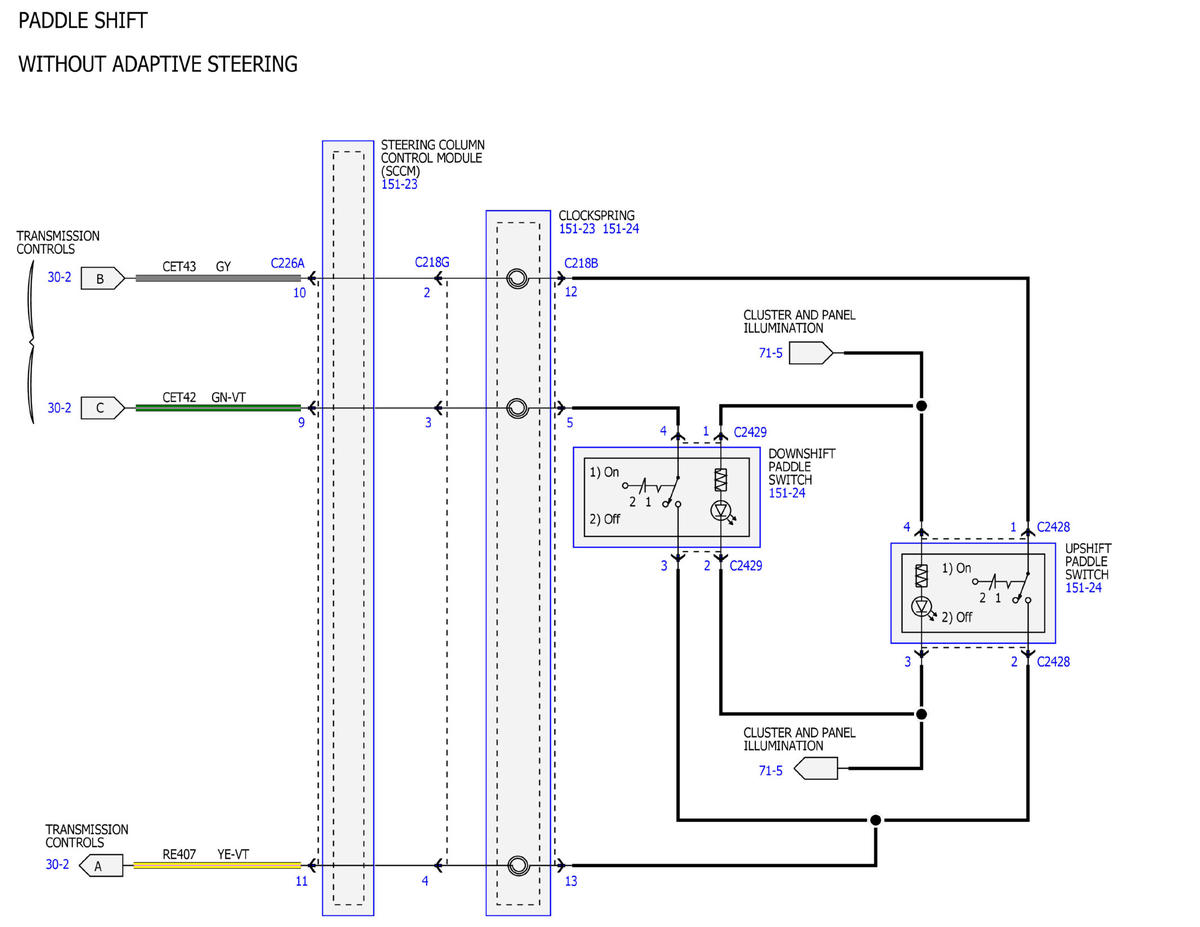

Fig 3: Transmission Controls - 6F35 Wiring Diagrams (3 of 4)

Courtesy of FORD MOTOR COMPANY

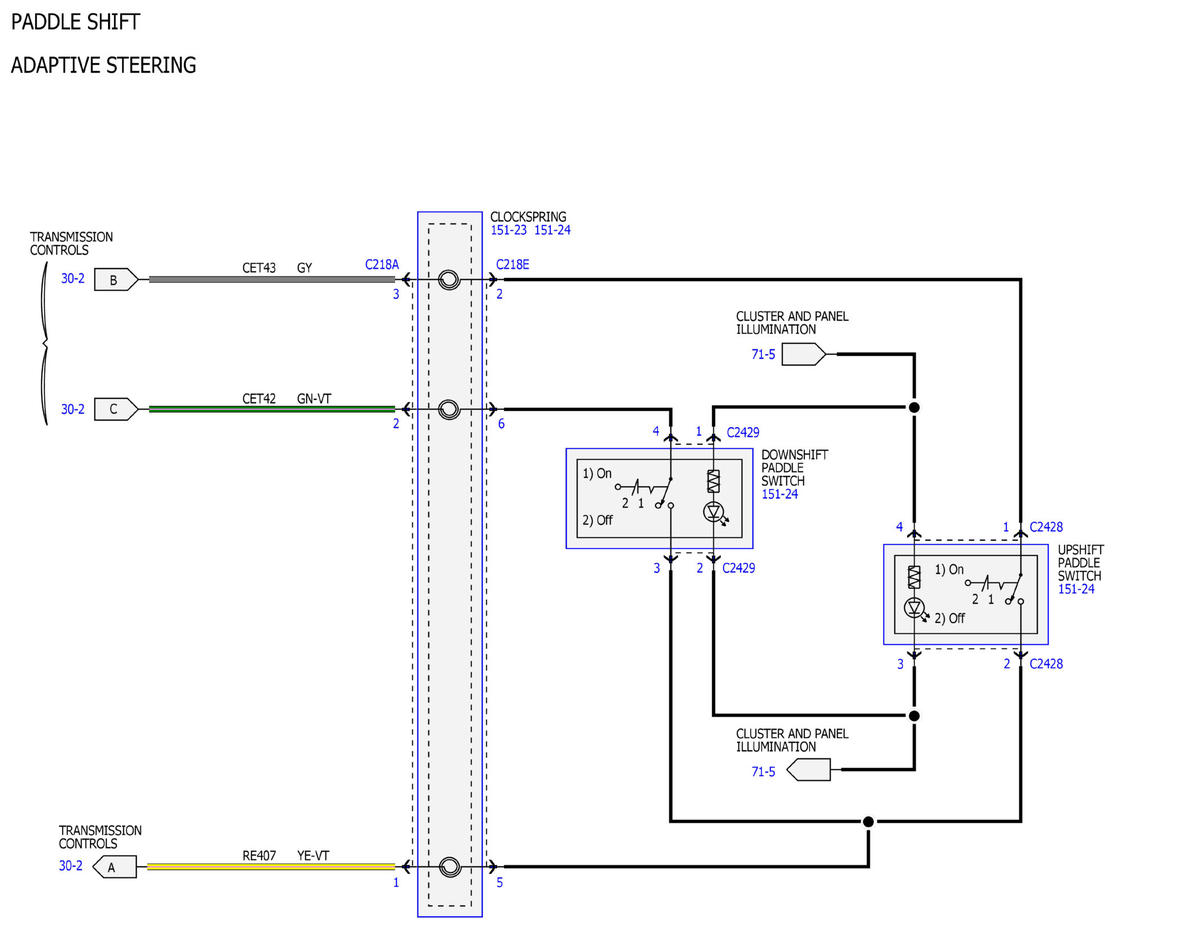

Fig 4: Transmission Controls - 6F35 Wiring Diagrams (4 of 4)

Courtesy of FORD MOTOR COMPANY
