Roof Opening Panel

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

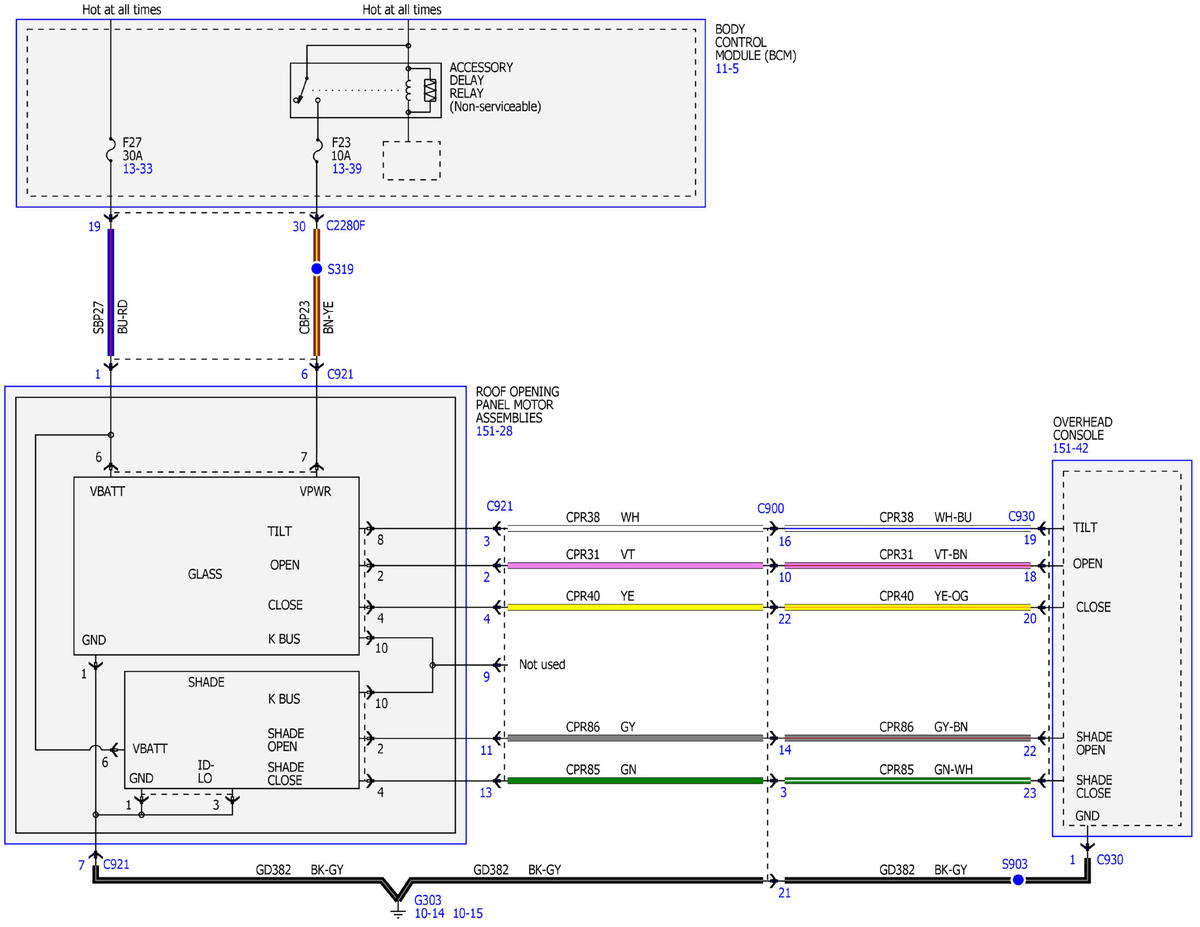

Fig 1: Roof Opening Panel Wiring Diagrams
GFDWR1727Courtesy of FORD MOTOR COMPANY
