Remote Keyless Entry And Alarm

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

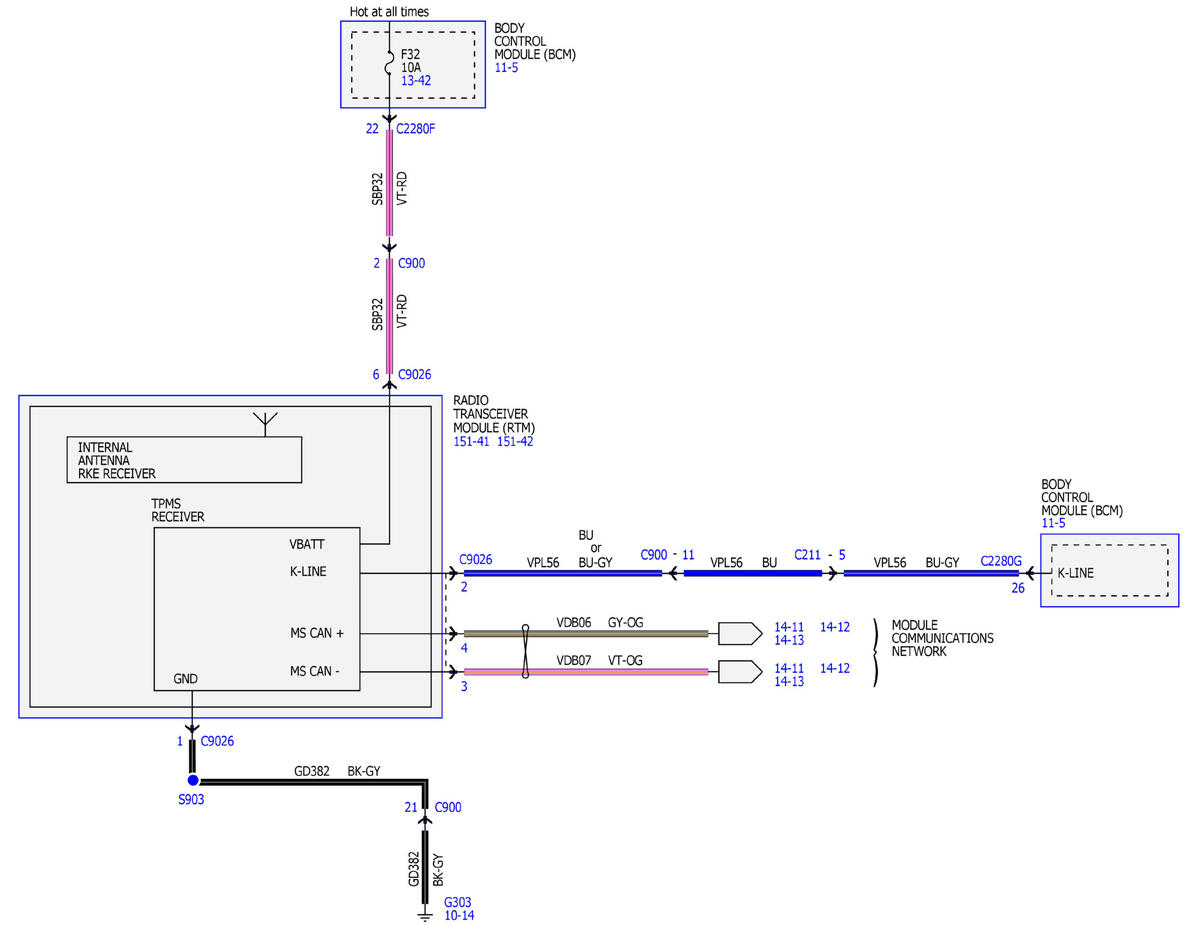

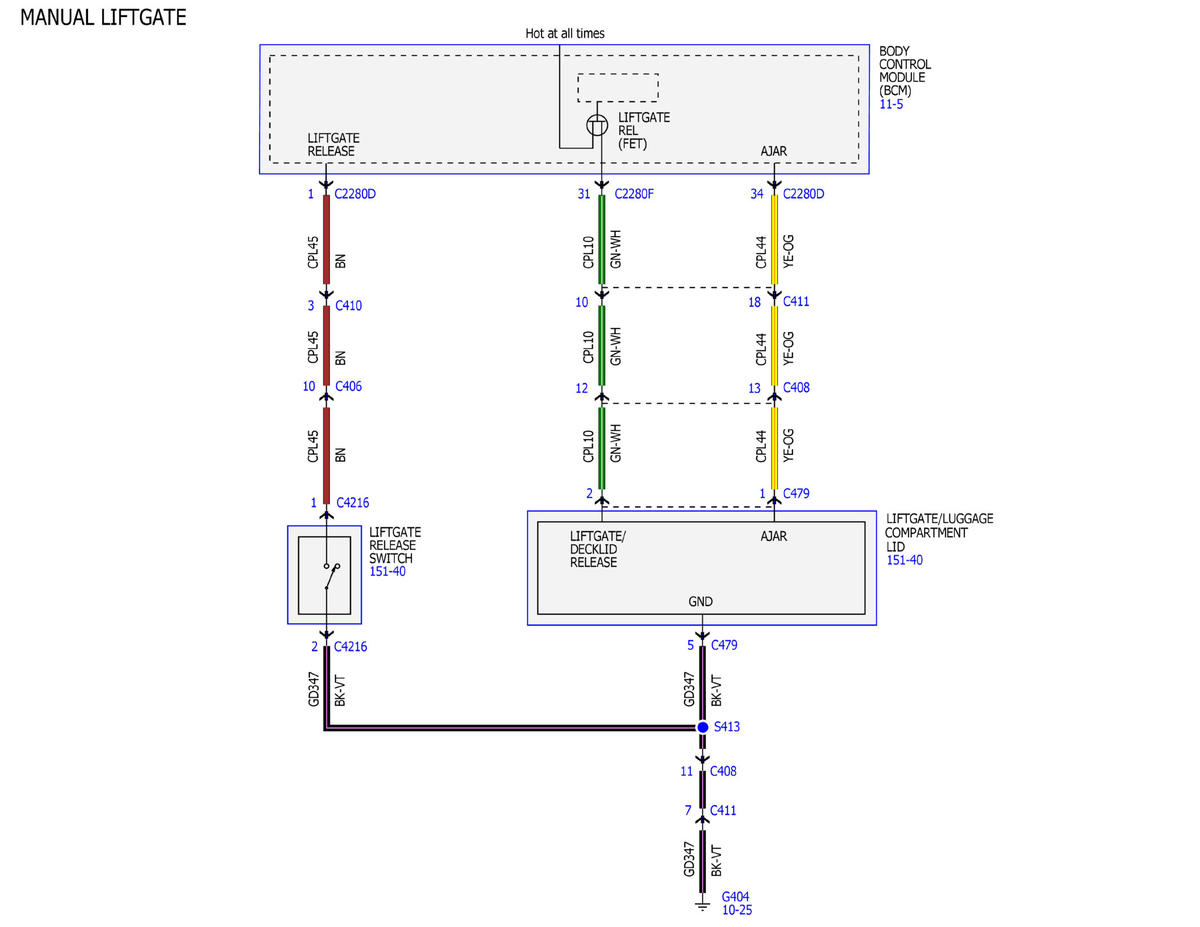

Fig 1: Remote Keyless Entry and Alarm Wiring Diagrams (1 of 14)

Courtesy of FORD MOTOR COMPANY

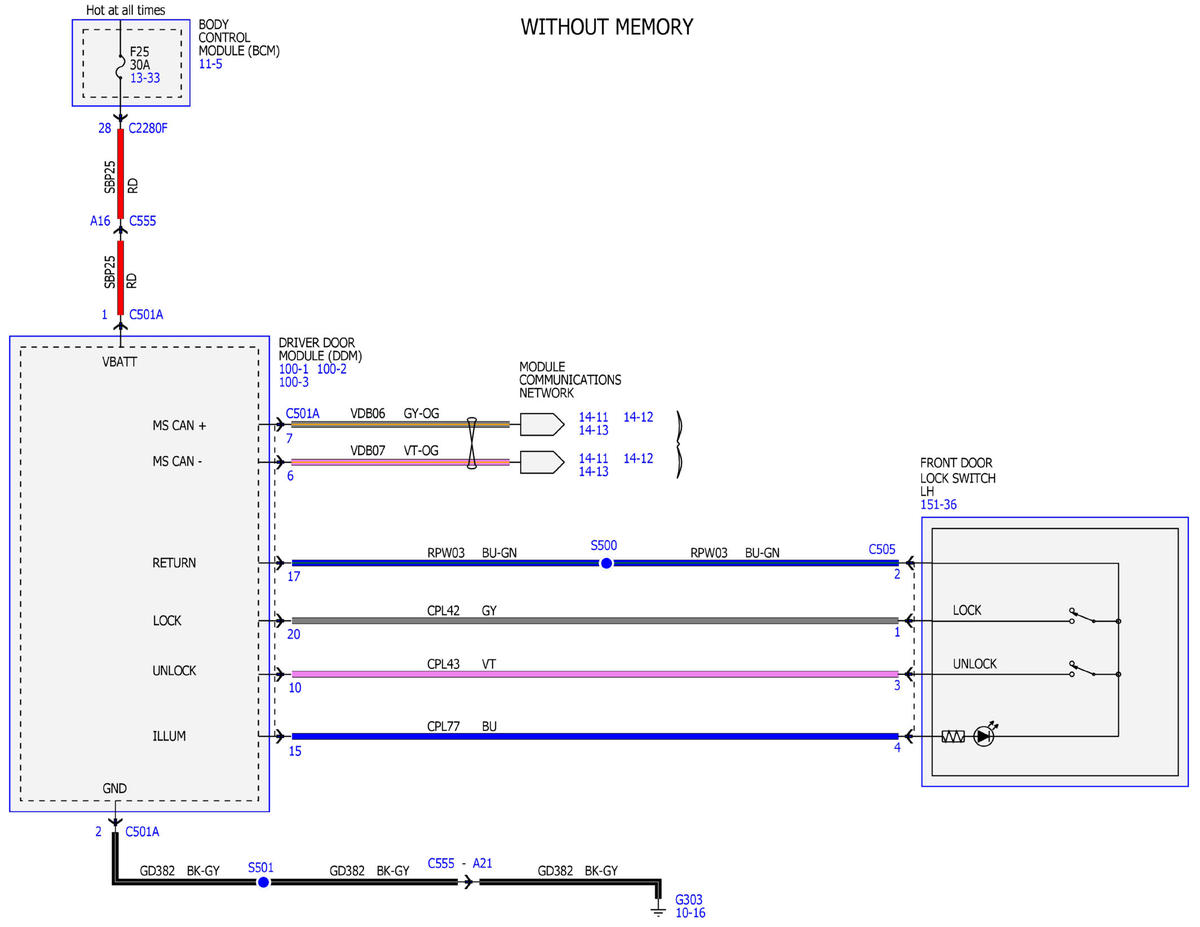

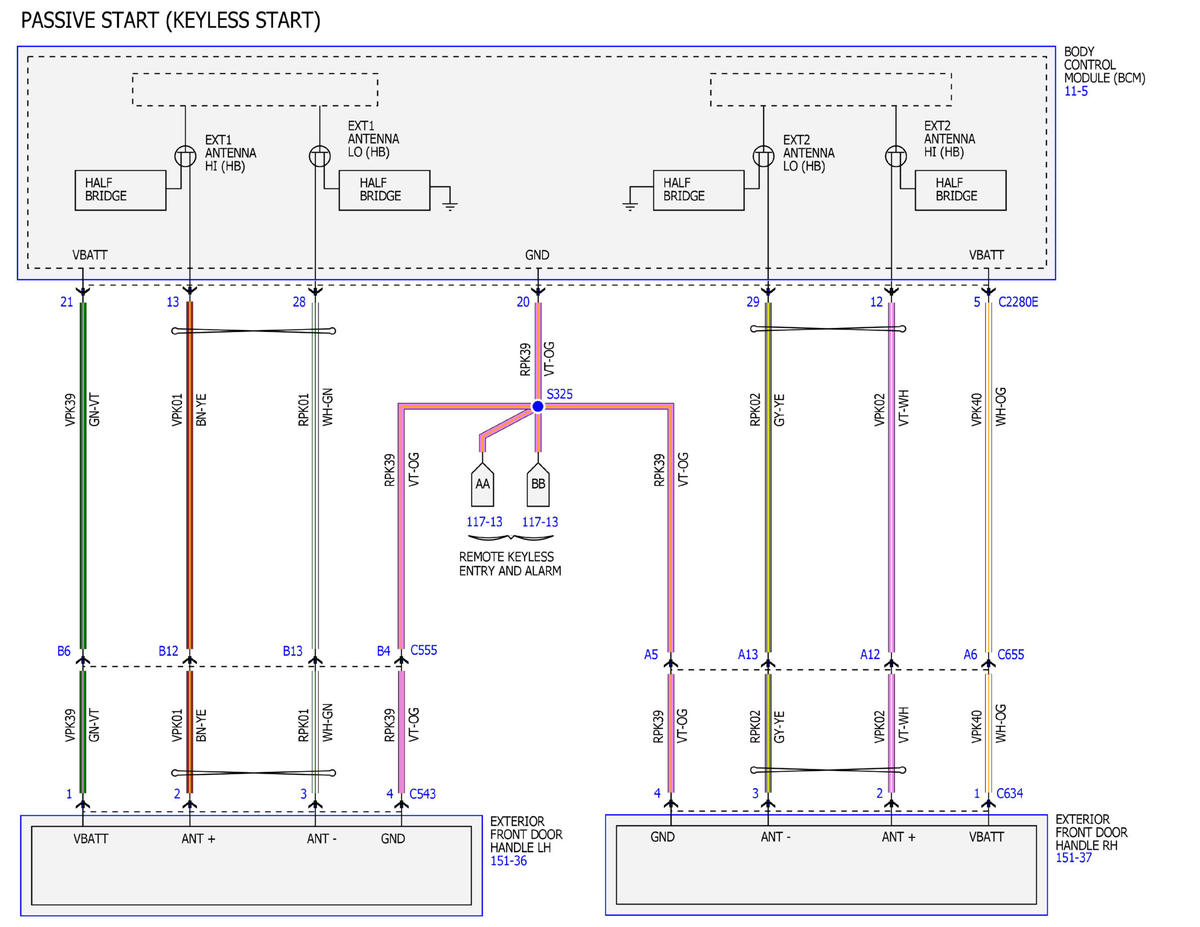

Fig 2: Remote Keyless Entry and Alarm Wiring Diagrams (2 of 14)

Courtesy of FORD MOTOR COMPANY

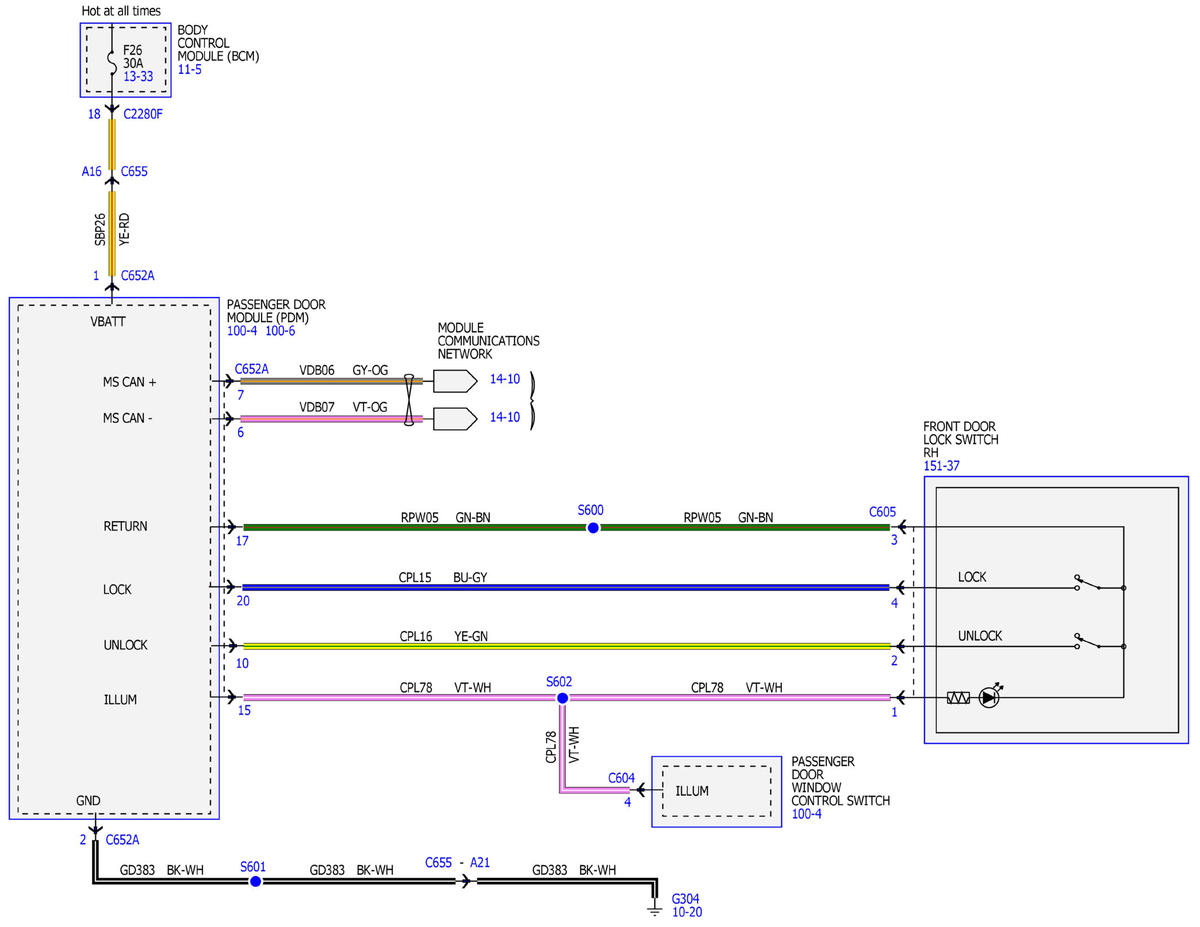

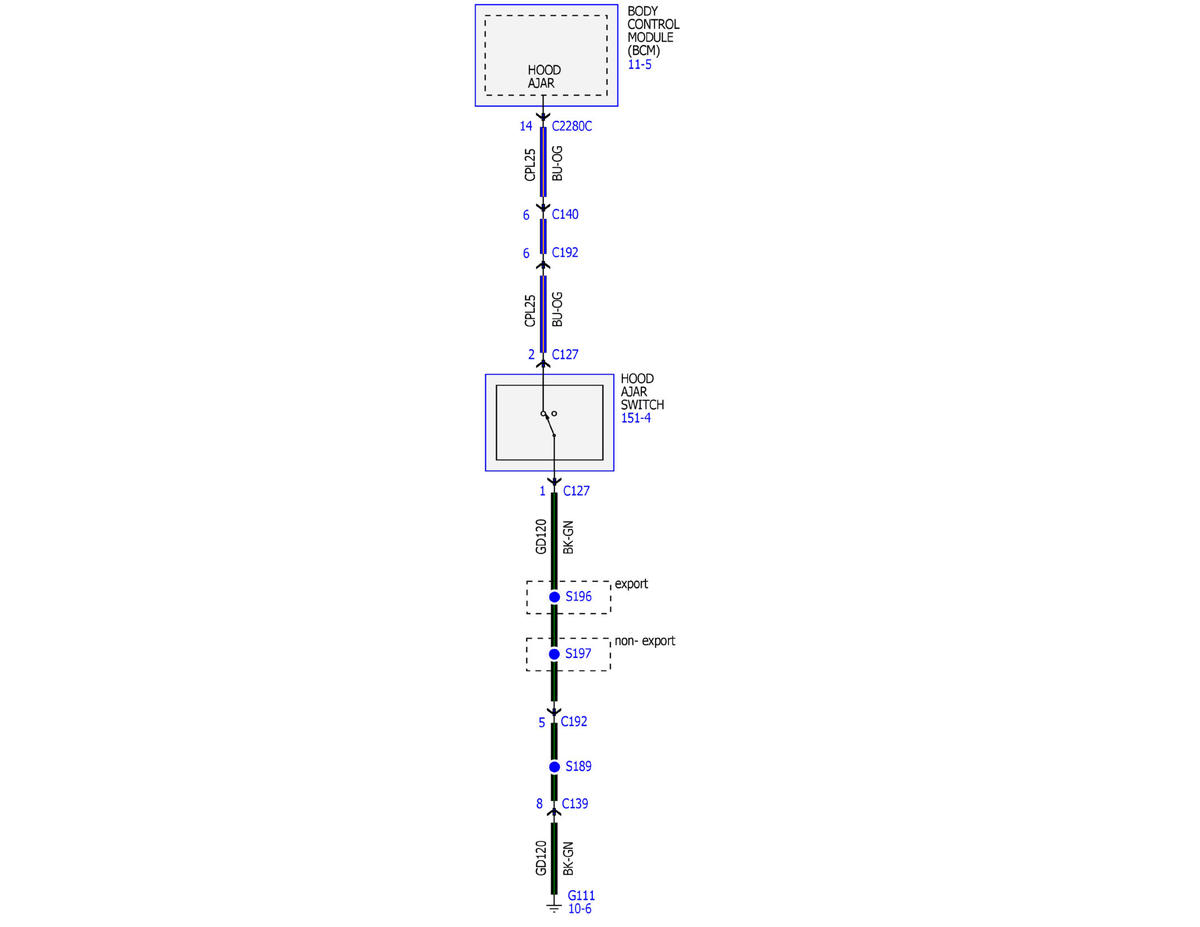

Fig 3: Remote Keyless Entry and Alarm Wiring Diagrams (3 of 14)

Courtesy of FORD MOTOR COMPANY

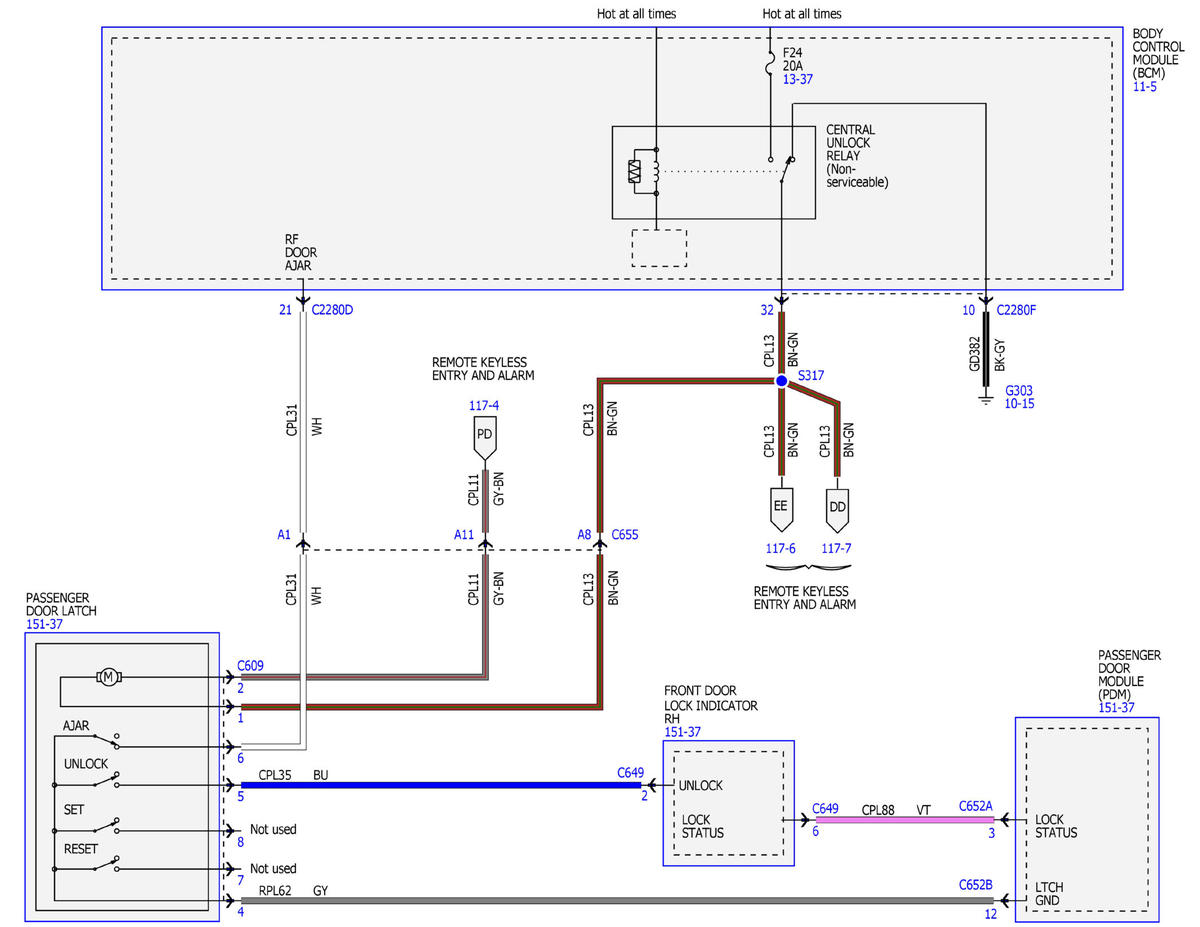

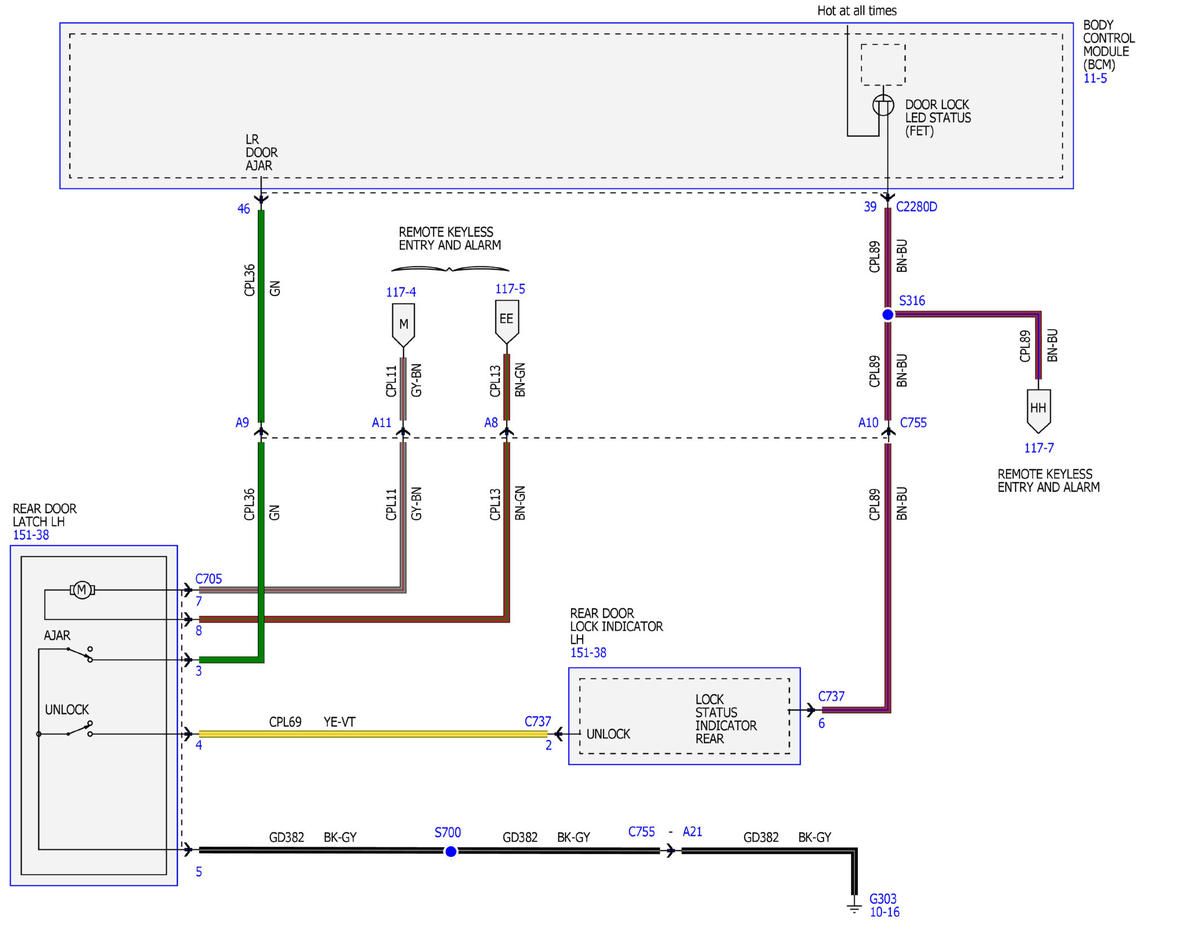

Fig 4: Remote Keyless Entry and Alarm Wiring Diagrams (4 of 14)

Courtesy of FORD MOTOR COMPANY

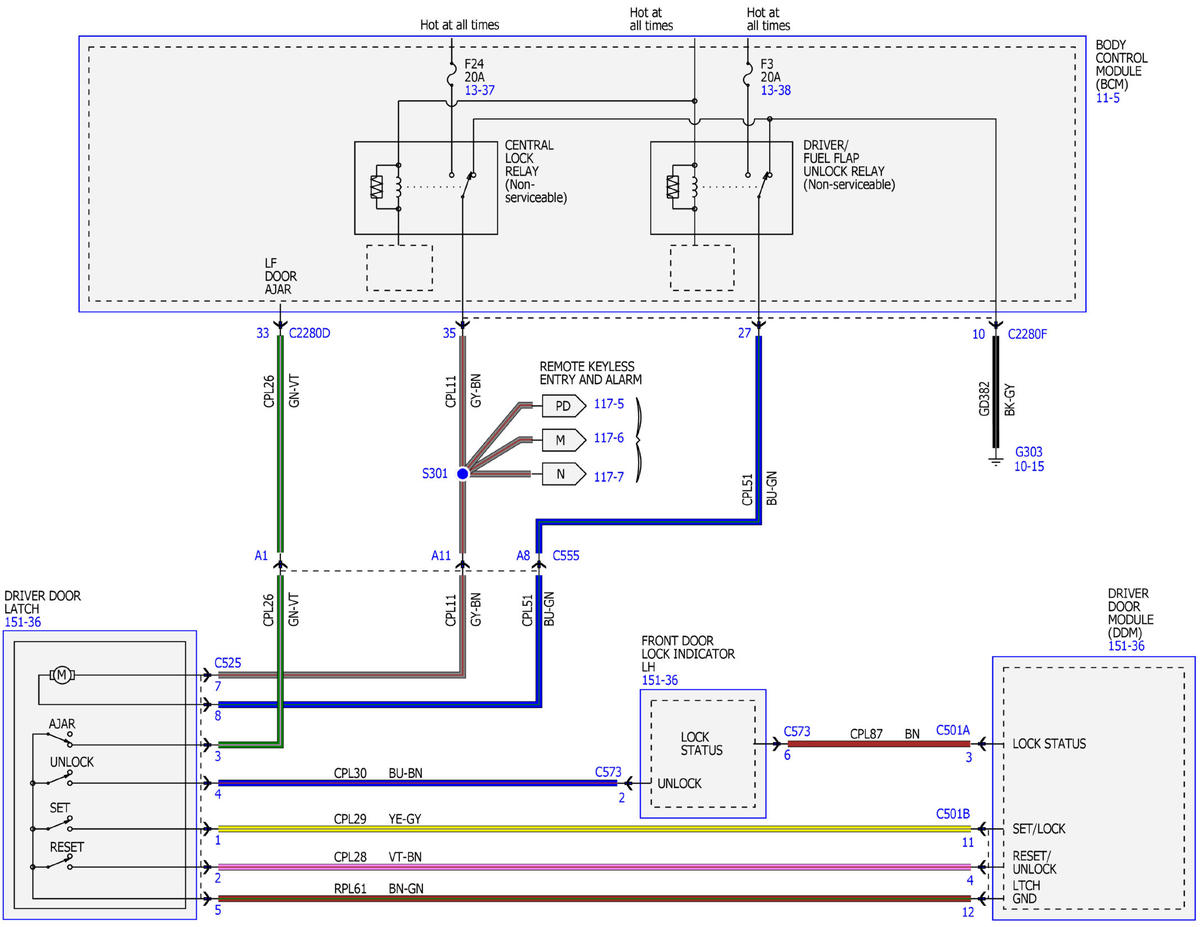

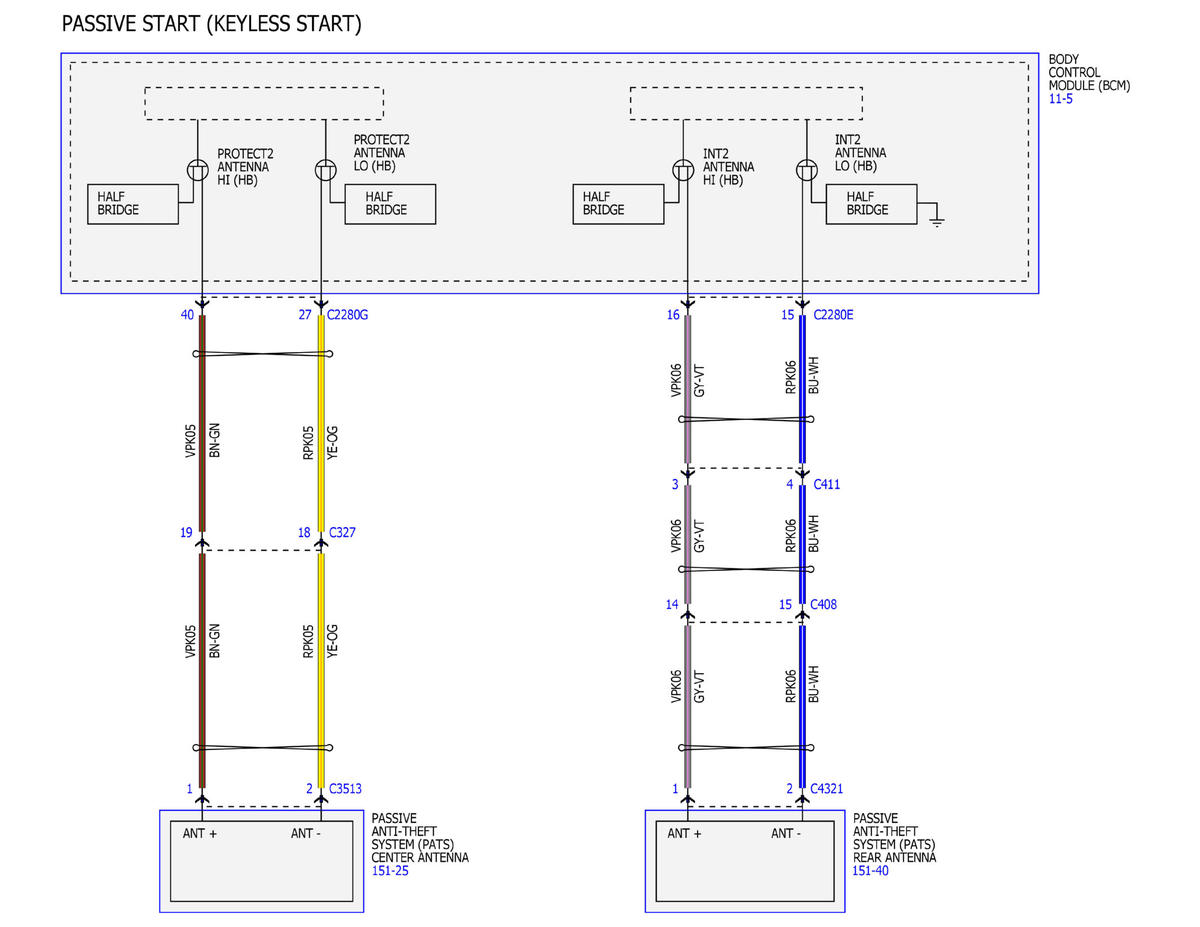

Fig 5: Remote Keyless Entry and Alarm Wiring Diagrams (5 of 14)

Courtesy of FORD MOTOR COMPANY

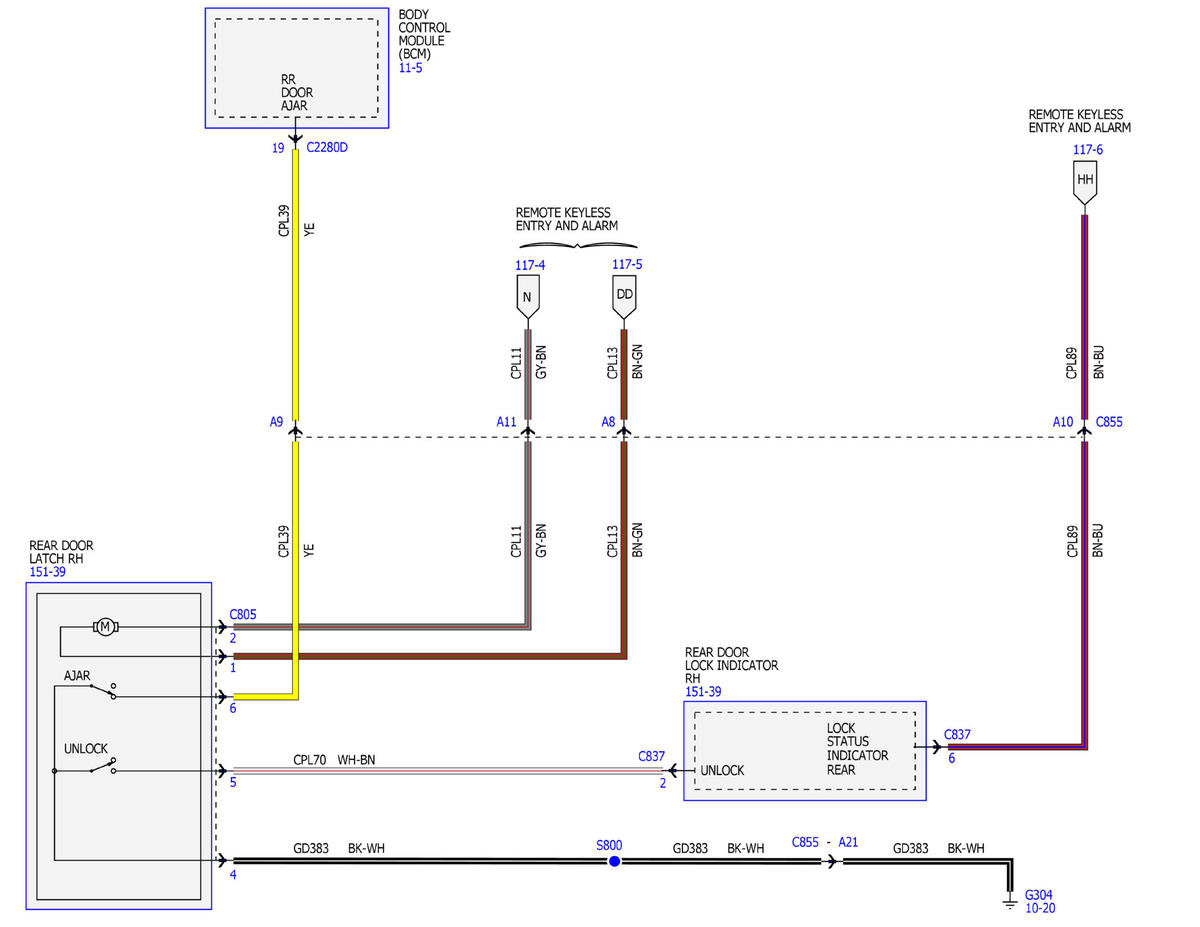

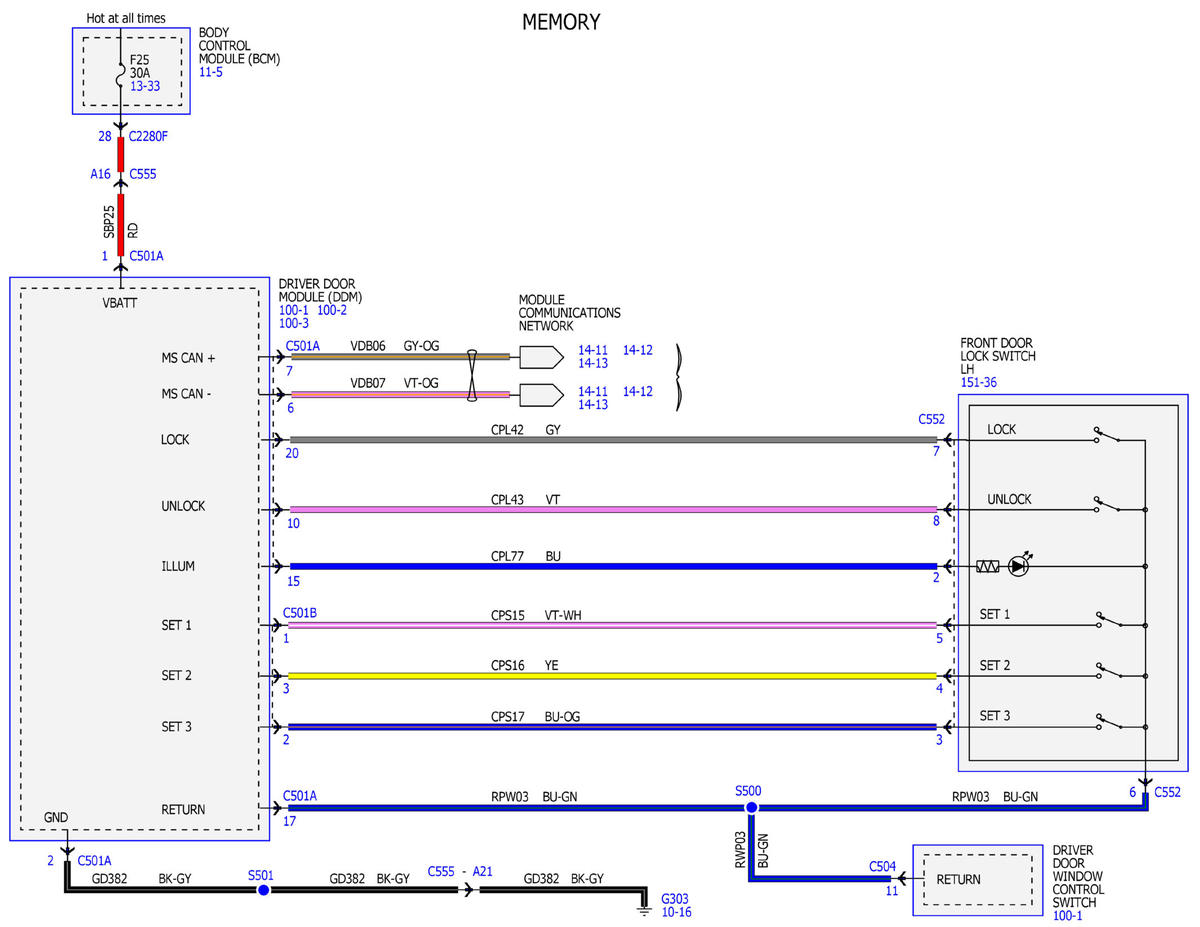

Fig 6: Remote Keyless Entry and Alarm Wiring Diagrams (6 of 14)

Courtesy of FORD MOTOR COMPANY

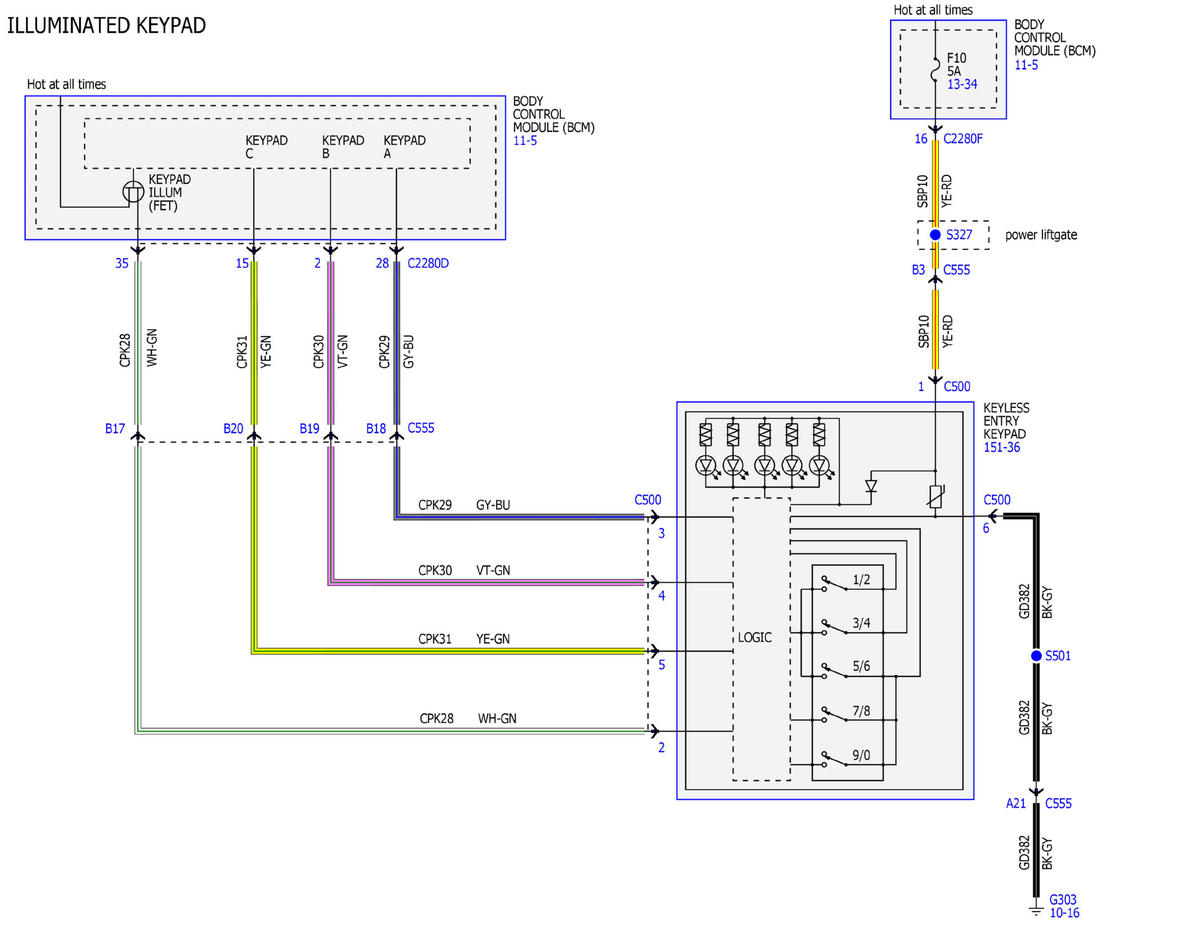

Fig 7: Remote Keyless Entry and Alarm Wiring Diagrams (7 of 14)

Courtesy of FORD MOTOR COMPANY

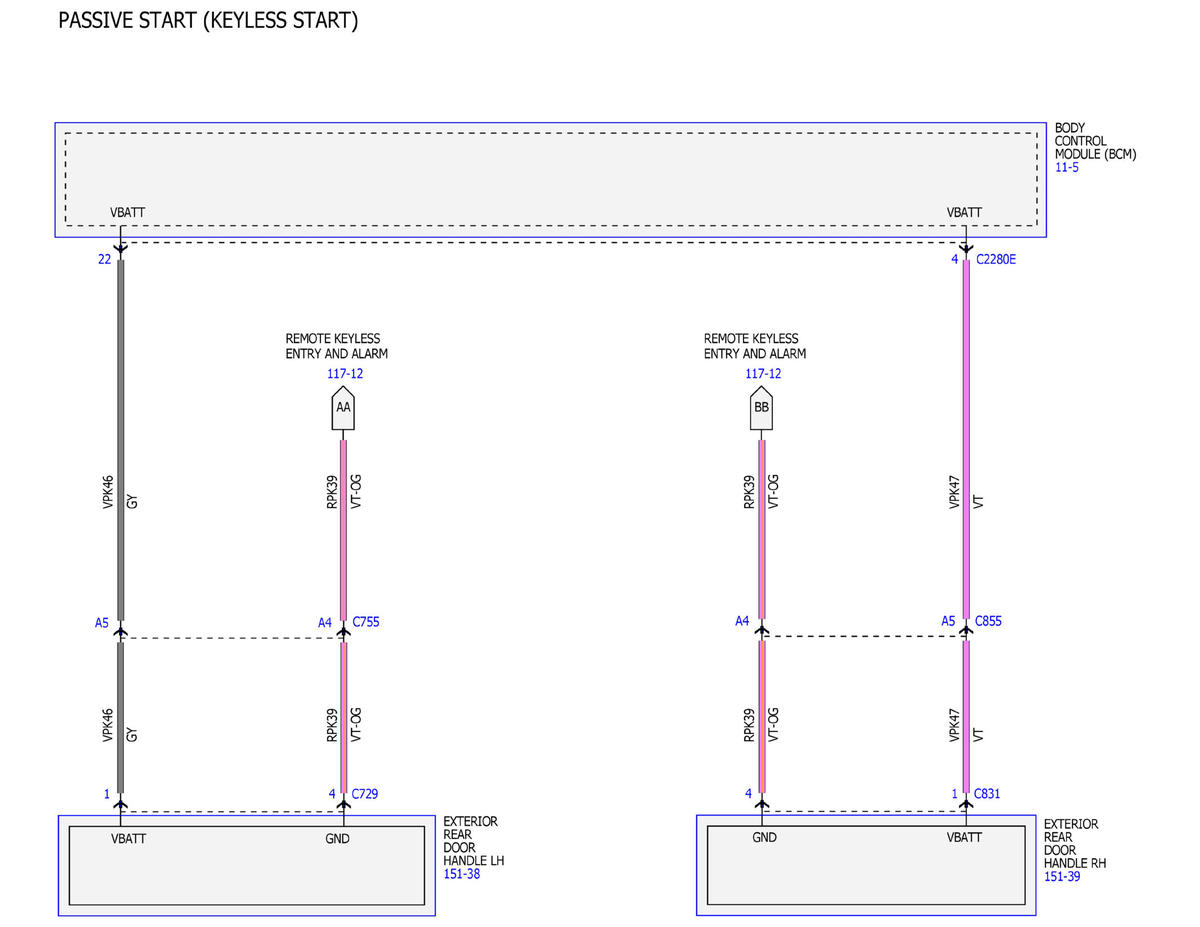

Fig 8: Remote Keyless Entry and Alarm Wiring Diagrams (8 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Remote Keyless Entry and Alarm Wiring Diagrams (9 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Remote Keyless Entry and Alarm Wiring Diagrams (10 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Remote Keyless Entry and Alarm Wiring Diagrams (11 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Remote Keyless Entry and Alarm Wiring Diagrams (12 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Remote Keyless Entry and Alarm Wiring Diagrams (13 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Remote Keyless Entry and Alarm Wiring Diagrams (14 of 14)

Courtesy of FORD MOTOR COMPANY
